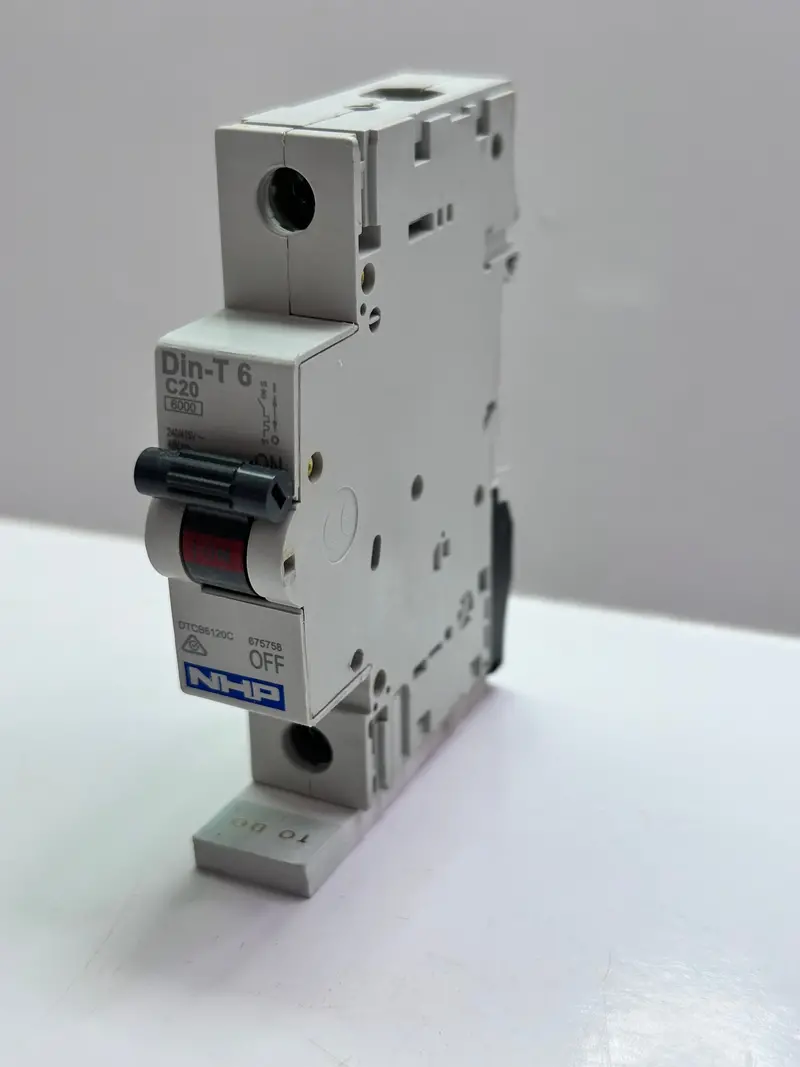

DIN-T6 DT-CB06120C Single-Pole, 20A Miniature Circuit Breaker (C-Curve)

Description

Rated current 20 A
Number of poles (total) 1
Trip curve C
Rated voltage 240 V
Frequency 50-60 Hz
Voltage type AC/DC
Service voltage Ub, AC 12 V
Service voltage Ub, DC 12 V
Nominal operating voltage Un, DC 48 V
Rated short-circuit breaking capacity Icn
according to AS/NZS 60898 at 230 VAC 6 kA
Rated short-circuit breaking capacity Icn
according to AS/NZS 60898 at 400 VAC 6 kA
Rated short-circuit breaking capacity Icu
according to AS/NZS 60947-2 at 230 VAC 10 kA
Rated short-circuit breaking capacity Icu
according to AS/NZS 60947-2 at 400 VAC 3 kA
Max. rated operation voltage Ue 250 V
Rated insulation voltage Ui 440 V
Rated impulse withstand voltage Uimp 6 kV
