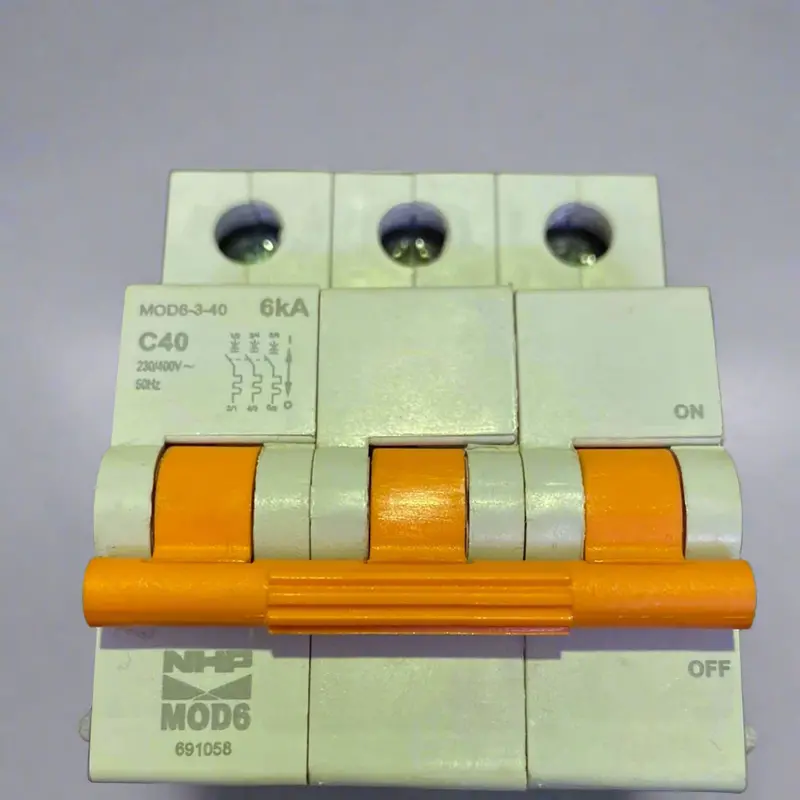

Description
Rated current: 40A
Number of poles: (total) 3
Trip curve: C
Rated voltage: 415V
Frequency: 50 – 60 Hz
Voltage type: AC/DC
Rated short-circuit breaking capacity: Icn
according to AS/NZS 60898 at 230 VAC: 6kA
Rated short-circuit breaking capacity: Icn
according to AS/NZS 60898 at 400 VAC: 6kA
Max. rated operation voltage Ue: 440V
Rated insulation voltage Ui: 440V
Rated impulse withstand voltage Uimp: 6kV
CONSTRUCTION Number of protected poles: 3
Degree of protection (IP): IP40
