Description

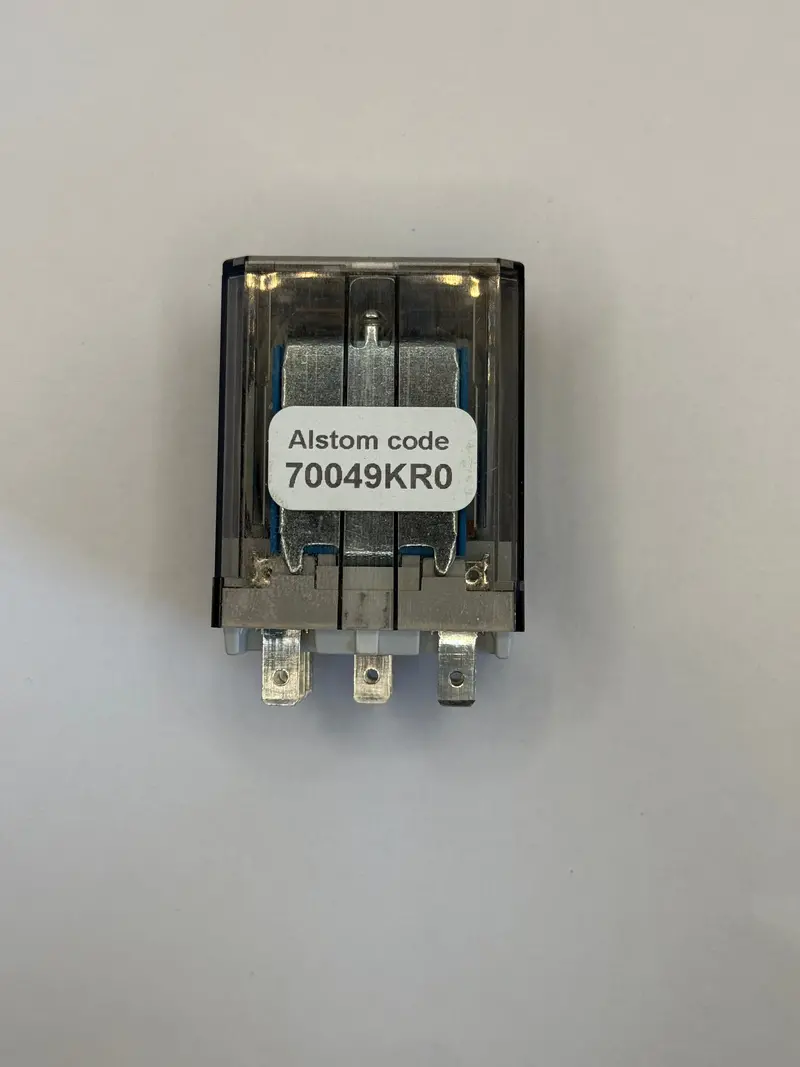

ALSTOM CODE: 70049KR0
The 62.33.9.024.0040 is a 3-pole Power Relay with DC coil, 62.33 series. 3CO (3PDT) contact configuration, AgCdO2 contact. Reinforced insulation between coil and contacts according to EN 60335-1, with 6mm clearance and 8mm creepage distance. Plug-in (92 series sockets) mounting. Lockable test button and mechanical indicator.
- 6kV (1.2/50μs) Isolation, coil contacts
- RT I Environmental protection rating
Applications
Industrial, Power Management, Automation & Process Control
| Brand | Finder | |
| Coil Voltage | 24V dc | |
| Contact Configuration | 3PDT | |
| Mounting Type | Plug In | |
| Switching Current | 16A | |
| Number of Poles | 3 | |
| Latching | No | |
| Terminal Type | Quick Connect | |
| Maximum Switching Voltage AC | 400V ac | |
| Length | 38.2mm | |
| Coil Resistance | 445 Ω | |
| Coil Power | 1.3W | |
| Height | 35.8mm | |
| Series | 62 Series | |
| Minimum Operating Temperature | -40°C | |
| Standards Met | CE, EAC | |
| Depth | 49.1mm | |
| Maximum Operating Temperature | +70°C | |
| Isolation Coil To Contact | 6kV | |
| Life | 10000000 (AC Mechanical) cycles, 20000000 (DC Mechanical) cycles | |
| Contact Material | Silver Alloy | |
| Maximum Switching Power AC | 4 kVA | |
| Application | Powe |
