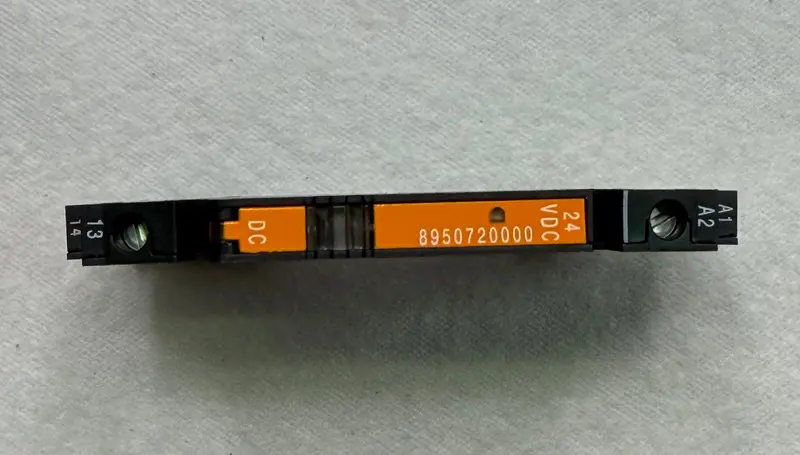

Solid-State Relay SPST-NO – 100mA Load, 48VDC Output

Description

TERMOPTO Series

8950720000 is a solid-state relay.

• 1 NO contact (transistor)
• Ensures wear- and maintenance-free potential separation in compact terminal block format
• Integrated protective circuit for inputs and outputs
• 55mm depth, 74.4mm height, 6.1mm width
• Ambient temperature range from -20°C to 60°C
• 24V DC ±20% rated control voltage, 7mA DC nominal control current
• 5 to 48V DC rated switching voltage
• 100mA rated switching current
• Screw wire connection, black colour
• IP20 protection degree
