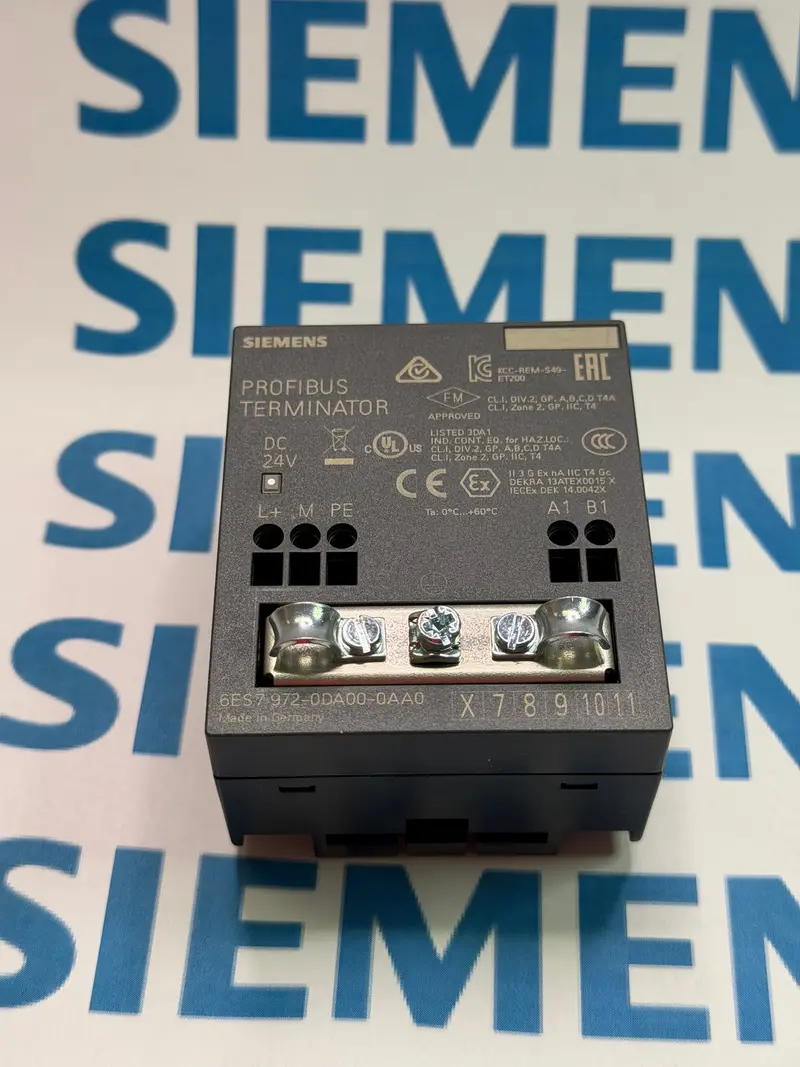

Description
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 20.4 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Input current | ||
| Current consumption, typ. | 30 mA | |
| Power loss | ||
| Power loss, max. | 0.72 W | |
| Interfaces | ||
| PROFIBUS DP | ||
| ● Transmission rate, max. | 12 Mbit/s; 9.6 kbit/s to 12 Mbit/s | |
| Degree and class of protection | ||
| IP degree of protection | IP20 | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| ● min. | 0 °C | |
| ● max. | 60 °C | |
| Ambient temperature during storage/transportation | ||
| ● min. | -40 °C | |
| ● max. | 70 °C | |
| Relative humidity | ||
| ● Operation, max. | 95 %; at +25 °C | |
| Connection method | ||
| Design of electrical connection for supply voltage | Screw terminal block | |
| Design of electrical connection for PROFIBUS cables | Screw terminal block | |
