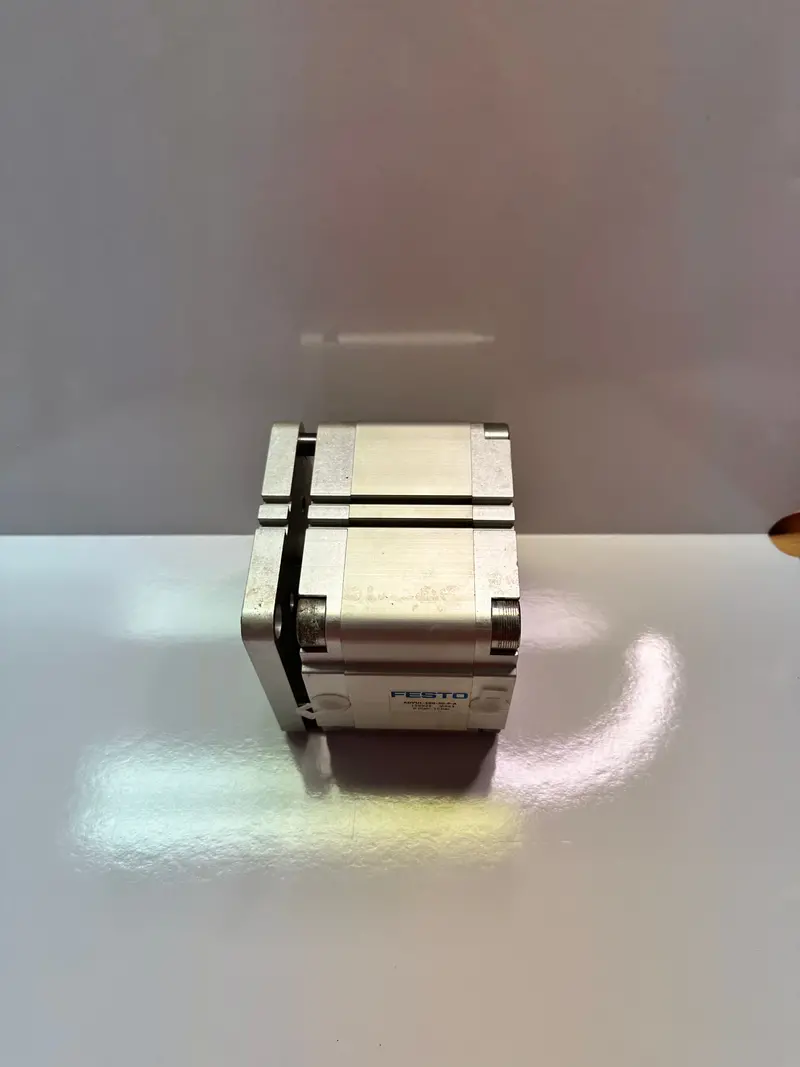

Festo ADVUL-100-30-P-A Compact Pneumatic Cylinder – Double-Acting, Single-Ended

Description

Product series / family nameCylinders – Pneumatic Compact air cylinder – double-acting – secured against twisting by guide rod and yoke plate series.Sub-range nameADVUL seriesBore size.100mm bore (B100mm)Stroke length.30mm stroke (S30mm)FunctionsCompact double-acting non-rotating single-ended guided piston-rod pneumatic air cylinderDesignbuilt-in magnet
anti-rotation/torsion protection via guide rods + yoke plate
elastic cushioning at both ends.
operation with oil lubrication possible
position sensing via proximity sensor.
Double-acting
Compressed air as per ISO8573-1;2010 [7;4;4]Pressure+1…+10bar (operating pressure)Shaperound cylindricalConnection typeFemale threaded rod
1/4″ BSPP / G1/4″ threaded pneumatic portMounting modethrough-hole mount
mount via accessories.MaterialNitrile rubber (NBR) / thermoplastic polyurethane (TPE-U(PU)) dynamic seals
Wrought Aluminum alloy cylinder barrel.
Wrought Aluminum alloy cover.
Galvanized steel flange
High-alloy steel piston rodAmbient air temperature for operation-20°C… +80 °CChemical resistanceCRC Class 2 – Moderate-corrosion stressGTIN code4052568121754Order code / Manufacturer SKU156925Manufacturer product statusCommercializedBenefitsPiston rod secured against rotation by a guide rod and yoke plate.
Plain bearing
Available with through piston rod
Magnetic piston for position sensingMarkingSymbol 00991737
