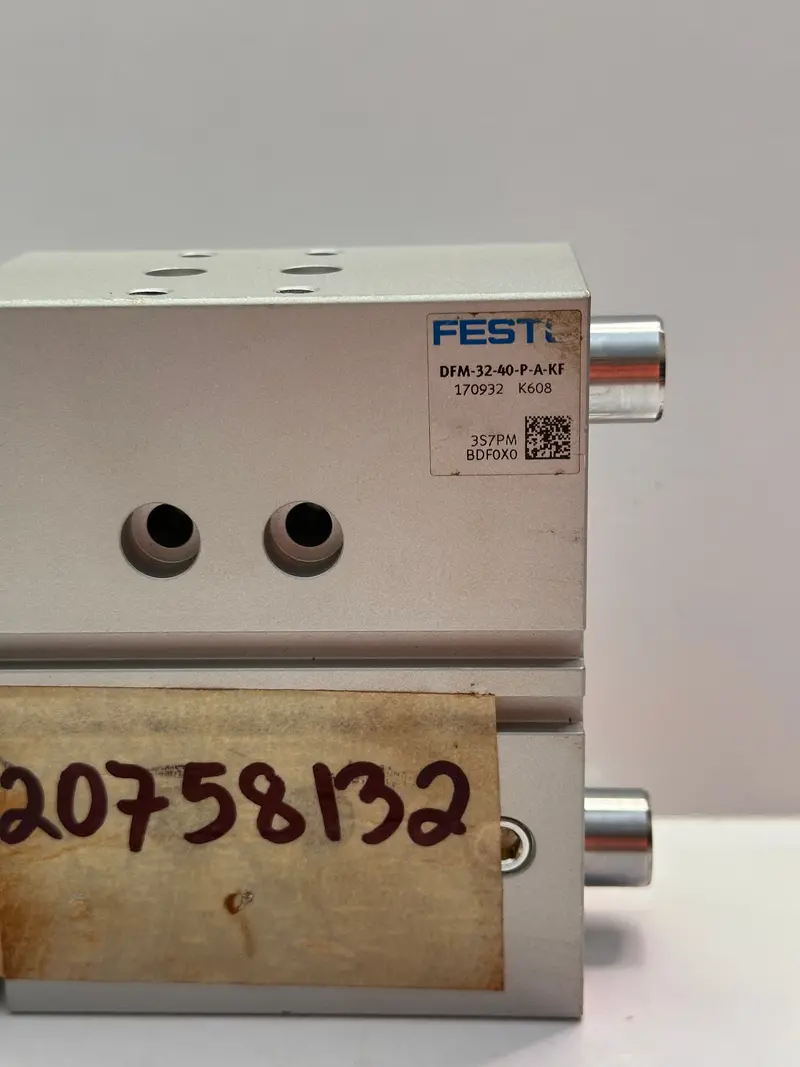

Festo DFM-32-40-P-A-KF Guided Linear Actuator – Double-Acting, Single-Ended, 32mm Bore (170932)

Description

Main functionPneumatic linear actuatorProduct series / family nameCylinders – Guided drive – double-acting seriesSub-range nameDFM seriesBore size32mm bore (B32mm)Stroke length40mm stroke (S40mm)FunctionsGuided double-acting single-ended pneumatic air linear actuatorDesignyoke plate
Cu-free
P.T.F.E.-free
recirculating ball bearing. guide
built-in magnet
elastic cushioning at both ends
operation with oil lubrication possible
position sensing via proximity sensor.
Double-acting
Compressed air as per ISO8573-1;2010 [7;4;4]Pressure+1.5…+10bar (operating pressure)Torque44.09Nm (max. on X axis)
18.66Nm (max. on Y axis)
18.66Nm (max. on Z axis)ShaperectangularConnection type1/8″ BSPP / G1/8″ threaded pneumatic portMounting modethrough-hole mount
internal threaded mountMaterialWrought Aluminum alloy housing
Polyurethane dynamic seals
Nitrile rubber (NBR) static seals
Hard chrome-plated tempered steel guide rod
Wrought Aluminum alloy cover
High-alloy stainless steel piston rodAmbient air temperature for operation-5°C…+60 °CMaximum radial load1130 NChemical resistanceCRC Class 0 – No corrosion stress
