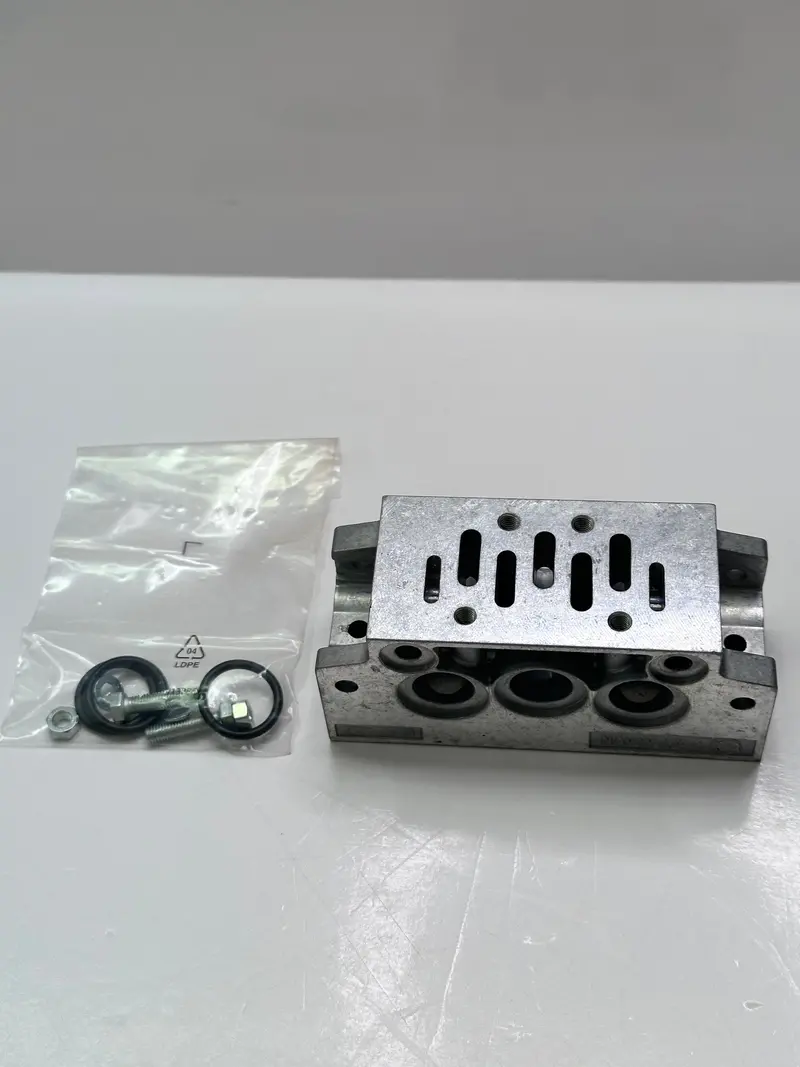

Festo NAVW-1/4-1-ISO Manifold Subbase with Angled Ports – Model 152789

Description

• Mounting position optional
• Conforms to standard ISO 5599-1
• Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot medium Ester oil < 0.1 mg/m³, to ISO 8573-1:2010 [-:-:2]
• LABS (PWIS) conformity VDMA24364-B2-L
• Storage temperature -20 °C … 80 °C
• Media temperature -10 °C … 60 °C
• Ambient temperature -10 °C … 60 °C
• Product weight 320 g
• Mounting method for sub-base With through-hole
• Type of mounting With through-hole
• Pilot air port 12/14 G1/8
• Auxiliary pilot air port 12 G1/8
• Auxiliary pilot air port 14 G1/8
• Pilot air port 12 G1/8
• Pilot air port 14 G1/8
• Pneumatic connection, port 1 G1/4
• Pneumatic connection, port 2 G1/4
• Pneumatic connection, port 4 G1/4
• Material sub-base Die-cast aluminum
