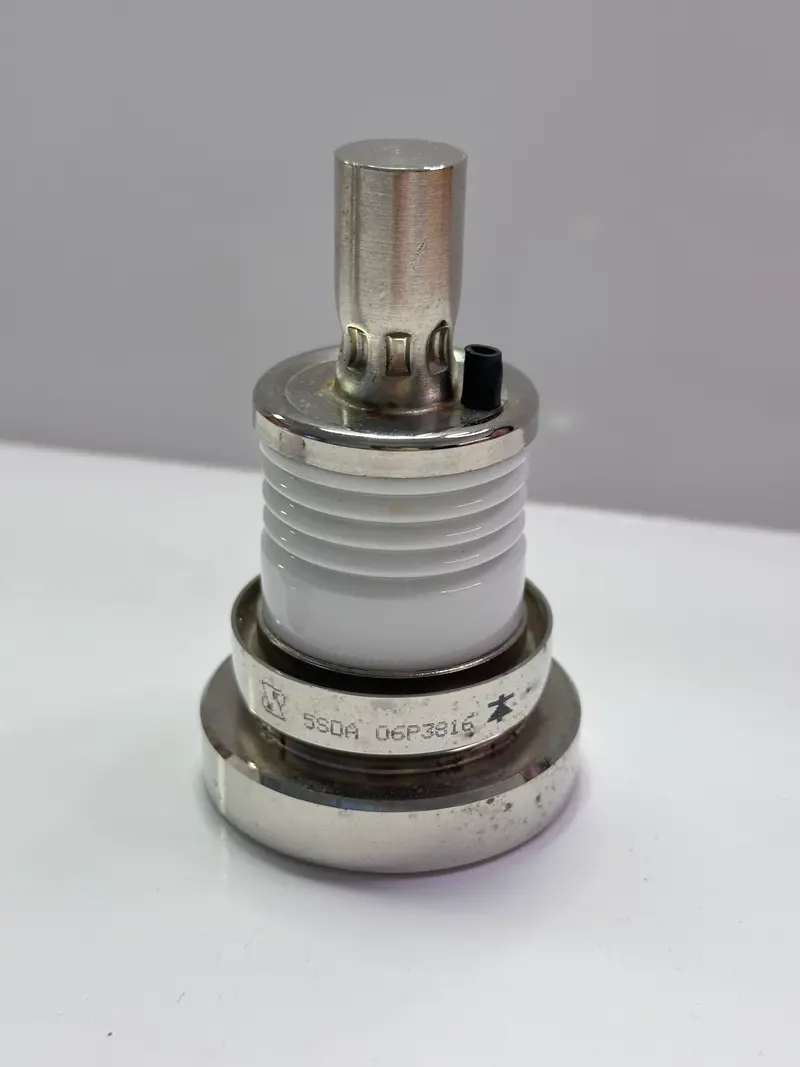

ABB 5SDA06P3816 Avalanche Diode Stud – DA805S-600-38 Series

Description

ABB Type Designation:DSA403-38G (F) Flat-baseMaximum allowable average forward current (Case temperature) IF(AV)M (TC) 600 A (85ºC) Max.repetitive peak reverse blocking voltage VRRM 3200 VSurge peak forward current IFSM 7600 A Threshold voltage VF0 1.010 V Forward slope resistance rF 0.720 mΩMax. surge avalanche power dissipation (single pulse) PRSM 50 kW Temperature of p-n junction Tvj max 160 ºC Thermal resistance, junction to case Rth(j-c) 60 K/kW Thermal resistance, case to heatsink Rth(c-h) 30 K/kW Mounting torque Md 3.5 ± 0.3 N·m
