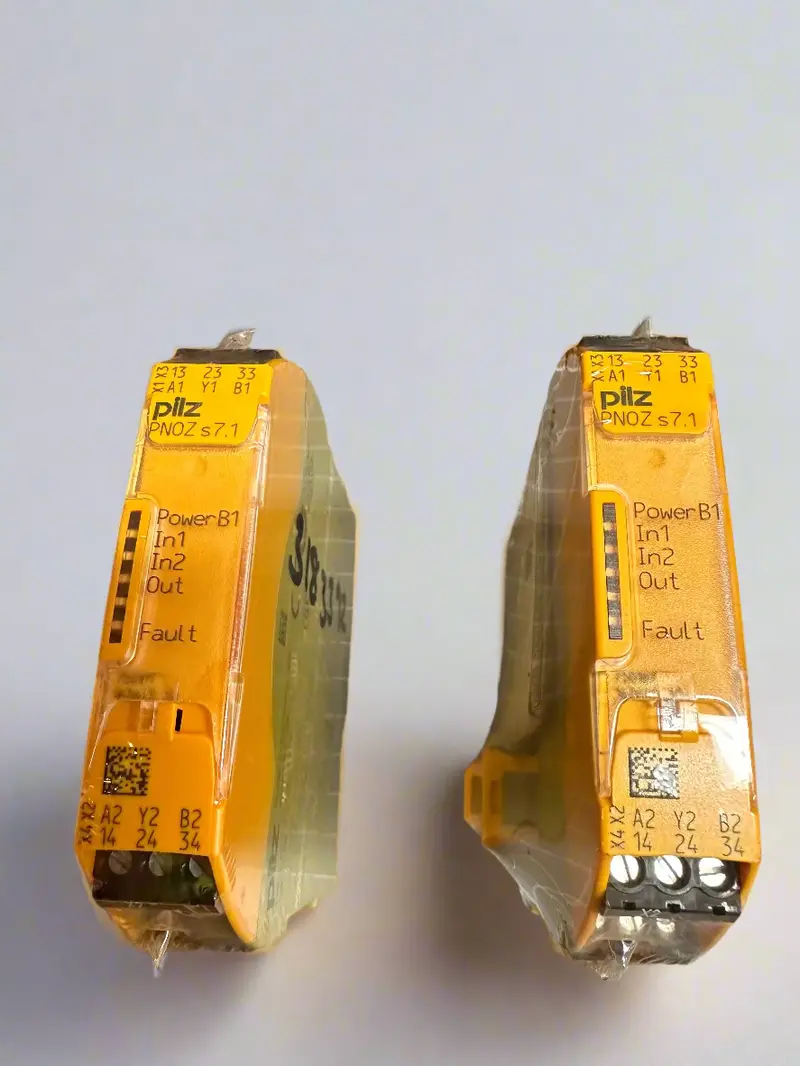

Pilz PNOZ S7.1 Safety Relay Module – 24V DC, 3 Normally Open Contacts, Cascade Capable (Model 750167)

Description

Primary brandPilzMain functionSafety relayProduct series / family namePNOZ sigmaSub-range namePNOZ s7.1FunctionsSingle-channel contact expansion module
Instantaneous contact expansion
Safe separationSupply voltage (DC)19.2-28.8Vdc (24Vdc nom.)DisplayPower B1 LED indicator
In1 LED indicator
In2 LED indicator
Output LED indicator
Fault LED indicatorRated currentSafety output contacts ratings
6A (24Vdc; DC-1)
6A (240Vac; AC-1)
5A (24Vdc; DC-13)
5A (230Vac; AC-15)Connection typeplug-in/detachable spring term. connectionsMounting modeDIN rail mountingOperating modeDual-channel operation — with PNOZsigma base unit — via PNOZsigma connector
Single-channel operation (without PNOZsigma base unit) — 1-input circuit affects the output relays; Connection for base unit
Dual-channel operation and supply voltage (with PNOZsigma s7.2 expansion modules) — via PNOZsigma connectorDigital inputs1 x digital input (24Vdc; 70mA)
2 x feedback loop inputs (Y1-Y2)Digital outputs3 x instantaneous safety outputs (3NO / 3xSPST-NO each made of 2 N.O. contacts in series; 6A 24Vdc DC-1 or 240Vac AC-1 resistive load) (13-14; 23-24; 33-34)Degree of protectionIP40DimensionsW17.5mmNet Height (mm)100 mmNet Width (mm)17.5 mmNet Depth (mm)120 mmMaterialPC housingAmbient air temperature for operation-10…+55 °CPower consumption2 WManufacturer product statusCommercializedCompliant with standard(s)EN 60204-1
EN 62061
EN ISO 13849-1
VDE 0113-1
SIL3 / PL.e / Cat.4
PFH = 2.31E-09
CE
cULus
EAC
TUV
CCCClassSIL3 / PL.e / Cat.4BenefitsRelay outputs — 3 safety contacts (N/O); instantaneous
Supply voltage for expansion modules
LED for — Supply voltage at B1 and B2 / Input status; channel 1 / Input status; channel 2 / Switch status of the safety contacts / Fault
Plug-in connection terminals (either spring-loaded terminal or screw terminal)
The contact expansion module expands an existing circuit.
As the output relays are monitored via the base unit’s feedback loop; the safety functions on the existing circuit are transferred to the contact expansion module.
The safety function remains effective in the case of a component failure.
Earth fault in the feedback loop — Detected; depending on the base unit that is used.
Earth fault in the input circuit — The output relays de-energize and the safety contacts open.
