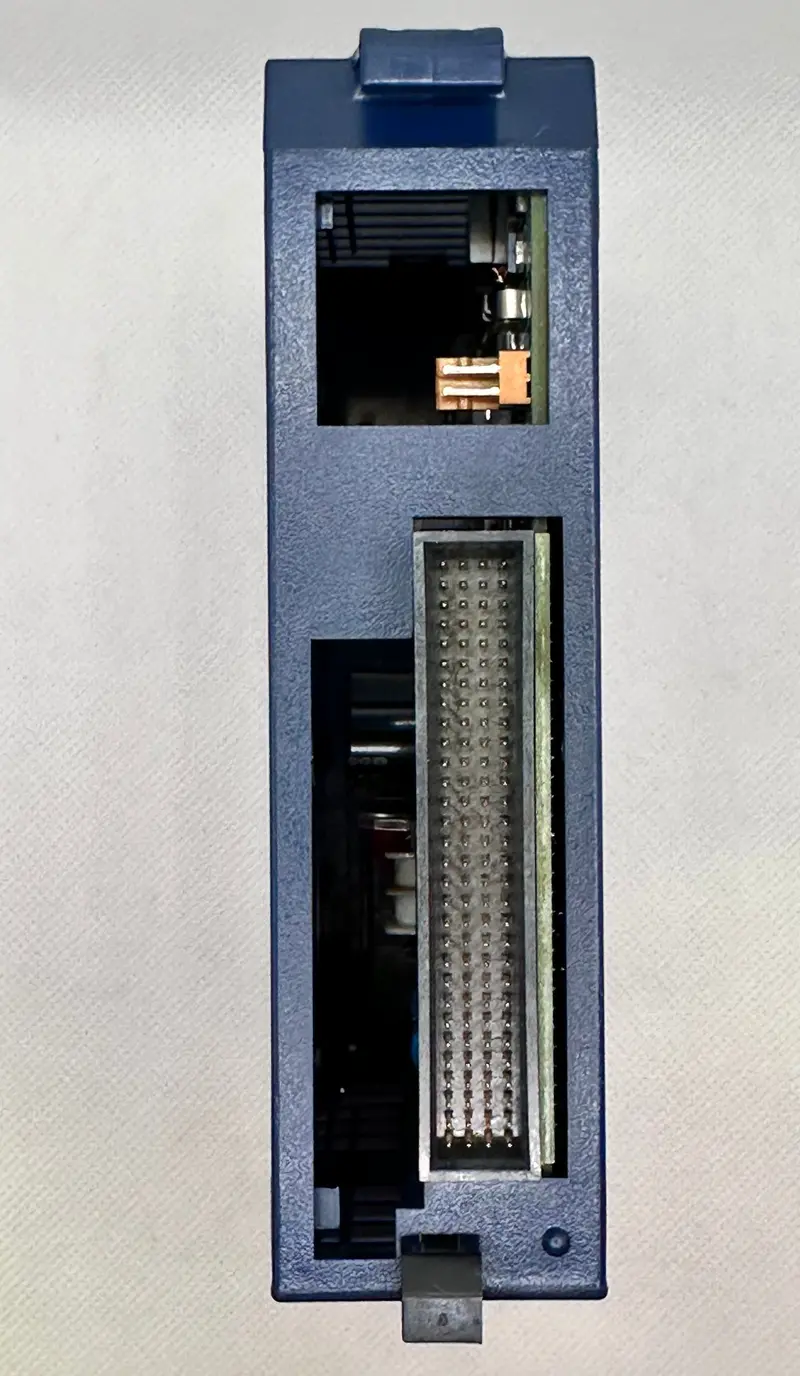

GE PACSystems RX3i IC695PSD140 Universal Backplane Power Supply – 24V DC, 40W

Description

IC695PSD140H

Series	24 VDC, 40 Watts, multi-purpose power supply for Rx3i PacSystem
Part Number	IC695PSD140
Power Supply Type	DC input power supply
Load Capacity	40 Watts
Nominal Input	24 VDC
Input Voltage Range	18 to 30 VDC
Input Power	60 Watts maximum at full load
Inrush Current	4 Amperes, 100 milliseconds maximum
Output Capacities	+5,1 VDC, 30 watts / +3,3 VDC, 30 watts / 40 Watts maximum total of both outputs.
Output Voltage	5.1 VDC: 5.0 VDC to 5.2 VDC (5.1 VDC nominal) / 3.3 VDC: 3.1 VDC to 3.5 VDC (3.3 VDC nominal)
Number of Daisy-Chained PSD140 Supplies / Number of PSD140 Supplies in Universal Backplane	Up to 4 / Up to 4
Current per Terminal	6 Amperes
Overcurrent	5 VDC output: 7 A maximum / 3,3 VDC output: 10 A maximum
Output Current	5.1 VDC: 0 to 6 Amperes / 3.3 VDC: 0 to 9 Amperes
Isolation (input to backplane)	None
Ripple (all outputs) / Noise (all outputs)	50 mV / 50 mV
