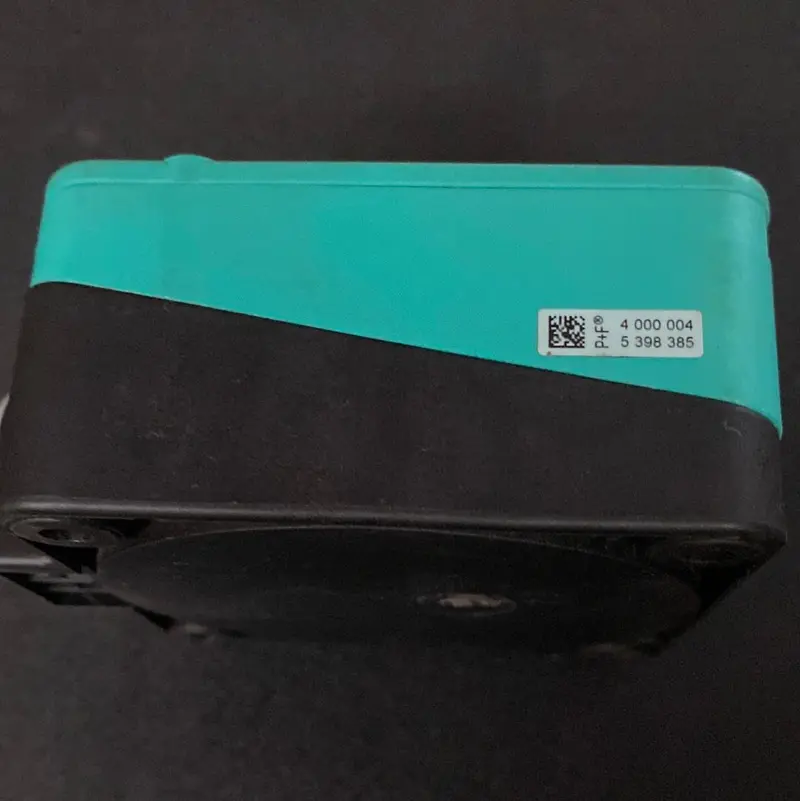

Description
General specifications
Switching element function Analog current output
Installation non-flush
Output polarity DC
Actuating element mild steel, e. g. 1.0037, SR235JR (formerly St37-2) , 120 mm x 120
mm x 1 mm
Measurement range 15 … 40 mm
Nominal ratings
Repeat accuracy 0 … 6 µm
Functional safety related parameters
MTTFd 1470 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Electrical specifications
Operating voltage UB 15 … 30 V DC
No-load supply current I0 ≤ 8 mA
Analog output
Output type 0 … 20 mA
Linearity error ≤ ± 10 % of full-scale value
Load resistor ≤ 500 Ω
Rate of current rise
0 … 20 mA max. 12 A/s
20 … 0 mA max. 5.1 A/s
Recovery time 1 … 10 ms , typ. 5 ms
Adjustment tolerance zero point ≤ ± 10 % of full-scale value
Temperature drift ≤ ± 0.1 %/K of full-scale value
Operating voltage ≤ 0.5 %
Residual ripple ± 30 µA
Ambient conditions
Ambient temperature -10 … 70 °C (14 … 158 °F)
Mechanical specifications
Connection type terminal compartment
Core cross-section up to 2.5 mm2
Housing material PBT
Sensing face PBT
Housing base PBT
Protection degree IP67
Compliance with standards and directives
Standard conformity
Standards EN 60947-5-2:2007
IEC 60947-5-2:2007
EN 60947-5-7:2003
IEC 60947-5-7:2003
Approvals and certificates
UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
CCC approval CCC approval / marking not required for products rated ≤36 V
