Description

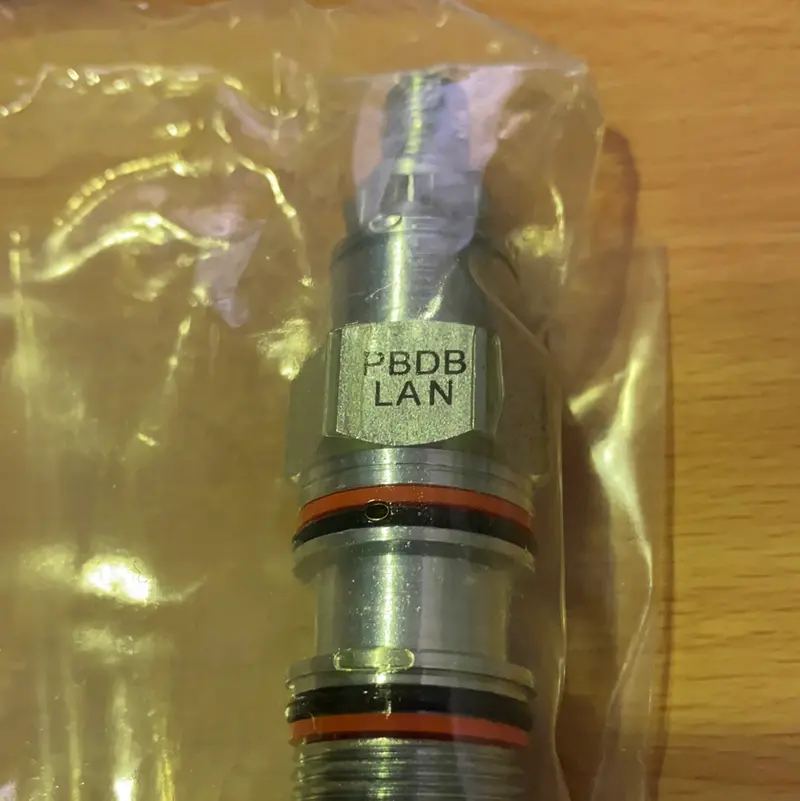

SUN HYDRAULICS PBDB-LAN
| Cavity | T-11A |
| Series | 1 |
| Capacity | 10 gpm – 40L/min. |
| Maximum Operating Pressure | 5000 psi |
| Factory Pressure Settings Established at | blocked control port (dead headed) |
| Control Pilot Flow | 7 – 10 in³/min. |
| Adjustment – No. of CW Turns from Min. to Max. setting | 5 |
| Valve Hex Size | 7/8 in. |
| Valve Installation Torque | 30 – 35 lbf ft |
| Adjustment Screw Internal Hex Size | 5/32 in. |
| Locknut Hex Size | 9/16 in. |
| Locknut Torque | 80 – 90 lbf in. |
| Model Weight | 0.35 lb. |
| Seal kit – Cartridge | Buna: 990011007 |
| Seal kit – Cartridge | EPDM: 990011014 |
| Seal kit – Cartridge | Polyurethane: 990011002 |
| Seal kit – Cartridge | Viton: 990011006 |
