Description

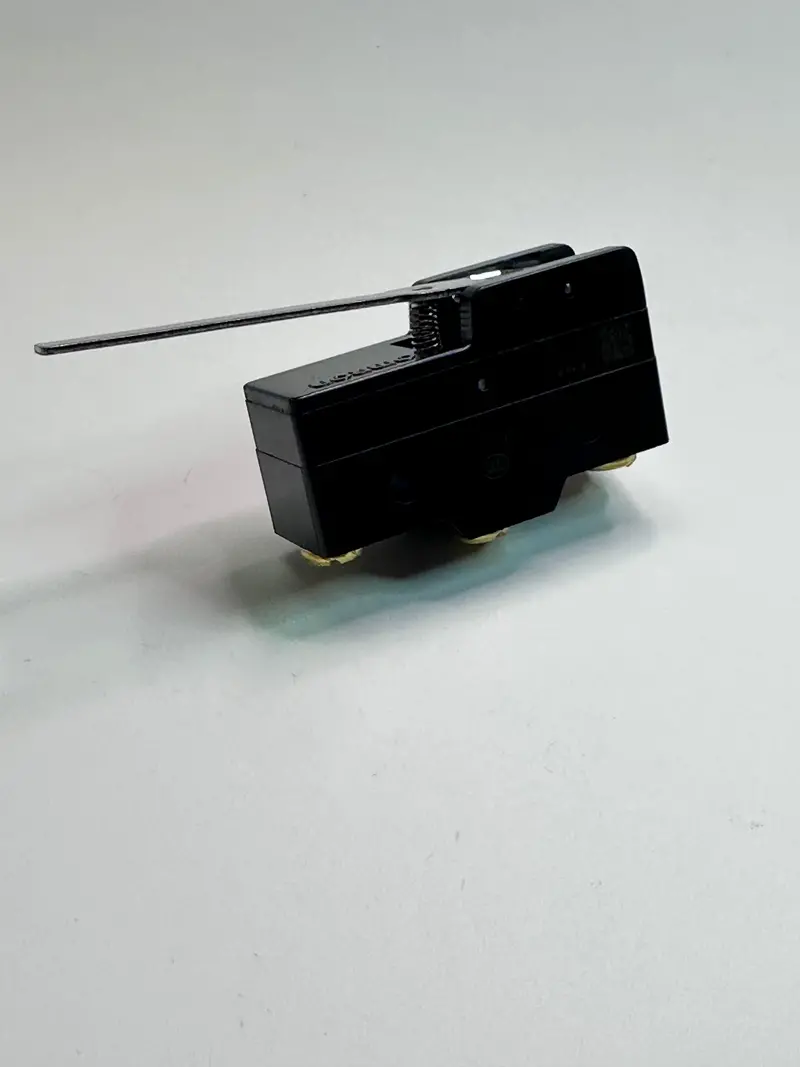

The Z-15GW-B is a single-pole double-throw (SPDT) general-purpose Basic Switch with 0.5mm standard contact gap and hinge lever actuator.
| Actuator Type | Roller Lever | |
| Pole and Throw Configuration | SPDT | |
| Normal State Configuration | NO/NC | |
| IP Rating | IP00 | |
| Maximum Current | 15A | |
| Maximum AC Voltage | 500V | |
| Maximum DC Voltage | 250V | |
| Series | Z | |
| Action Type | Snap Action | |
| Length | 39.4mm | |
| Standards Met | CE | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +80°C | |
| Depth | 17.45mm | |
| Width | 49.2mm | |
| Mechanical Life | 10000000Cycles |
