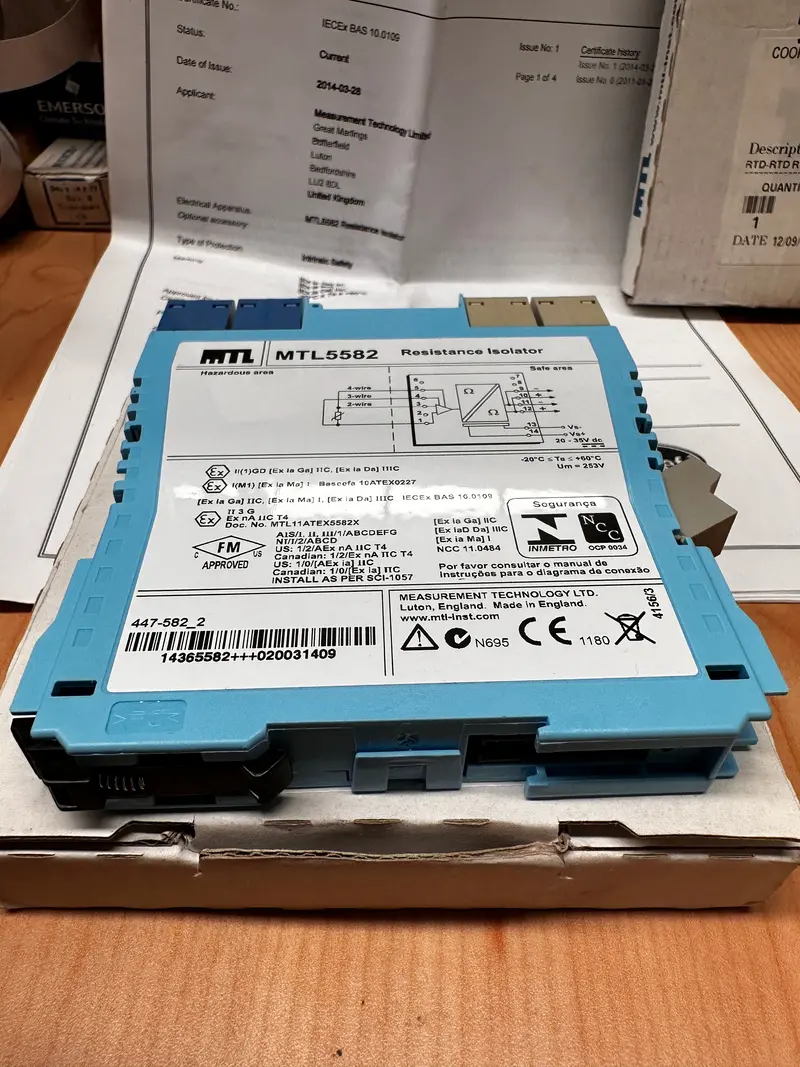

MTL 5582 Resistance Input Isolator for RTD Signal Repeating

Description

• Manufacturer : MTL Instruments

• Product No. : MTL5582

• Product type : Resistance Isolator to repeat RTD signals

• Number of channels : One

• Location of RTD : Zone 0, IIC, T4 hazardous area, Div. 1, Group A, hazardous location

• Resistance source : 2-, 3-, or 4-wire* RTDs to BS 1904/DIN 43760 (100O at 0°C) *user selectable by switches (factory set for 3-wire)

• Resistance range : 10O to 400O

• RTD excitation current : 200µA nominal

• Output configuration : 2, 3 or 4 wires (independent of mode selected for hazardous area terminals)

• Output range : 10O to 400O (from a 100µA to 5mA source)

• Temperature drift : ±10mO/C° typical (0.01%/°C @ 100O)

• Response time : To within 4% of final value within 1s. Not suitable for muliplexed input cards

• LED indicator: Green = power indication

• Power requirements, Vs : 33mA at 24V, 35mA at 20V, 28mA at 35V

• Maximum power dissipation within unit : 0.8W at 24V 1.0W at 35V
