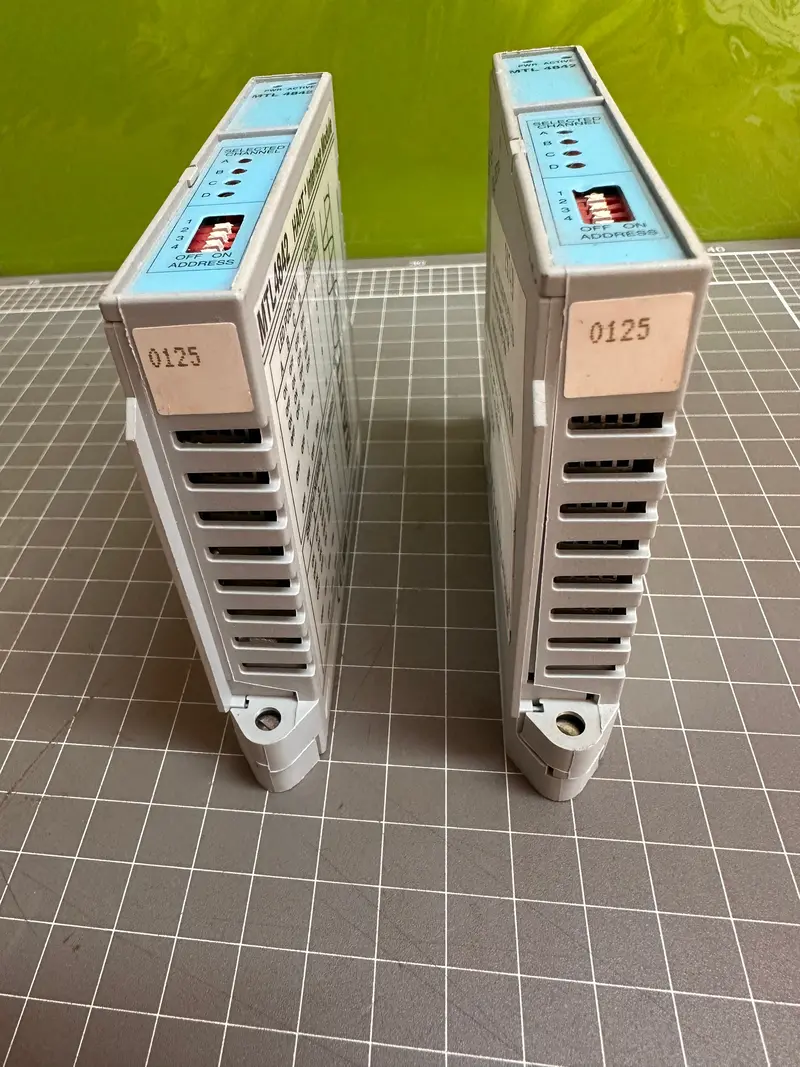

MTL 4842 HART Protocol Interface Module for Field Devices

Description

• MTL systems interface : Links up to 16 loops via backplanes Receives multiplexer control signals via interface bus from MTL4841 and selects one channel for communication

• Unit address : Switch selectable on top of module

• Interface bus : Total length of interface bus between module 1 and module 16 must not exceed 4m

• LED indicators Green : one provided for power, Amber: one to indicate unit is selected by MTL4841, Red: four to identify loop address

• Power requirements : Powered from backplane

• Power consumption : <0.1W
