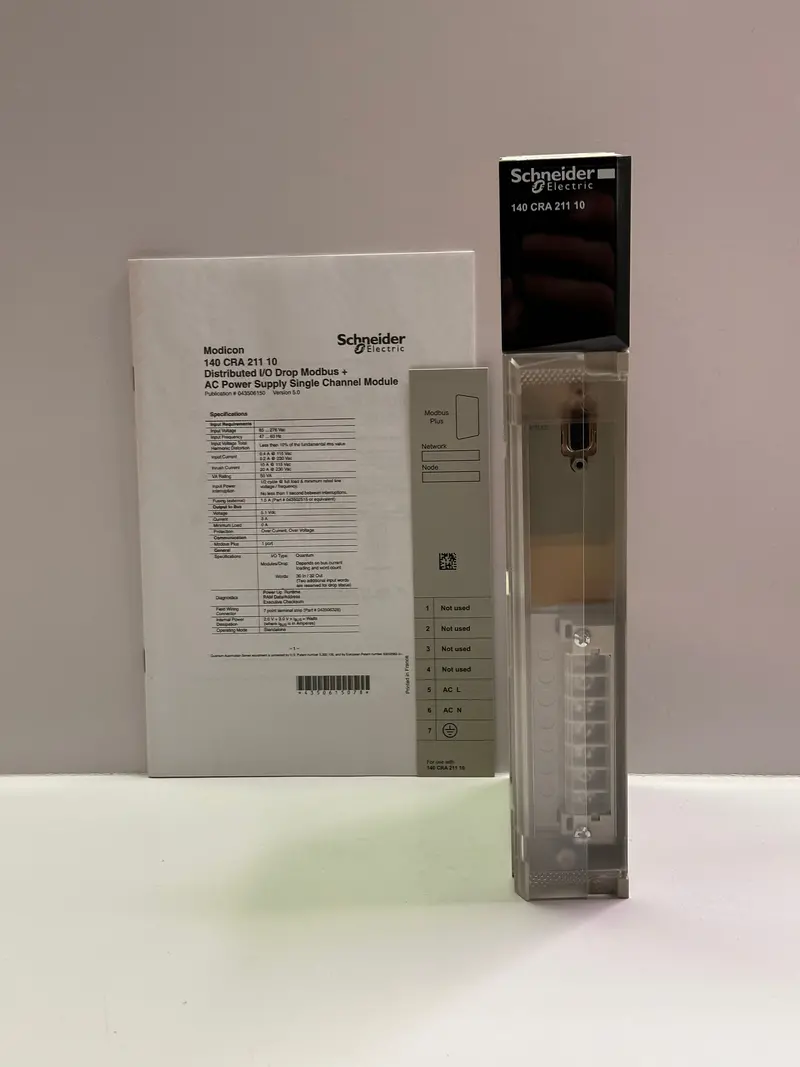

Modicon Quantum 140CRA21110 AC Digital I/O Drop Interface Module – 115/230 V, Single Port

Description

DISTRIBUTED 1/O DROP MODBUS + AC POWER SUPPLY   CHANNEL MODULE

• Model number 140CRA21110
• Product type DIO drop interface
• Rated supply voltage 115/230 V AC
• Supply voltage limits 85 to 276 V AC
• Supply frequency 47 to 63 Hz
• Rated power 50 VA
• Supply current 0.2 A at 115 V, 0.4 A at 230 V
• Inrush current 10 A at 115 V, 20 A at 230 V
• Output voltage 5.1 V
• Nominal output current 3 A
• Short-circuit protection Included
• Output overvoltage protection Included
• I/O words 30 input, 32 output
• Number of ports 1 single port
• Backplane Typical 2 positions
• Power dissipation 11 W
• Connections Terminal block 7 poles; RJ45 Modbus; SUB‑D 9 Modbus Plus; LC single‑mode fiber
• Operating temperature 0 to 60 °C
• Storage temperature -40 to 85 °C
• Standards UL 508; IEC 801-2 ESD; IEC 801-3 EMI
• Diagnostics Checksum at startup and runtime
