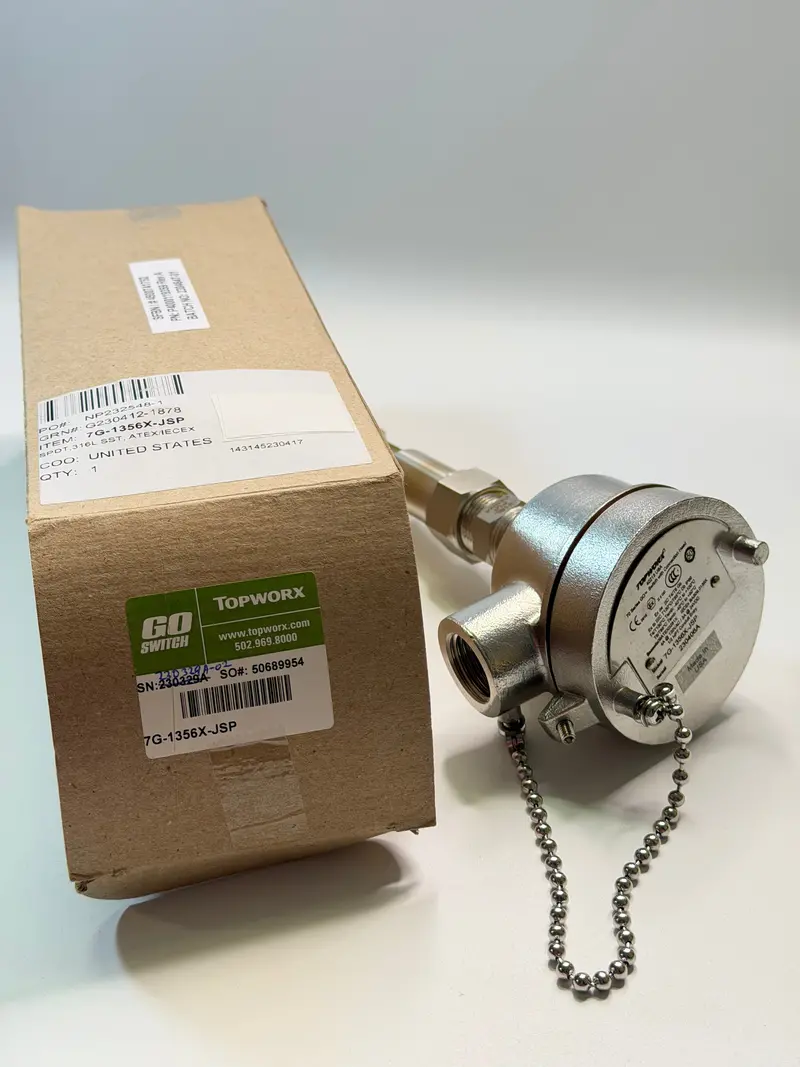

Go Switch 7G-1356X-JSP Inductive Proximity Sensor – Industrial Grade

Description

Proximity Switch Certified for ATEX Ex d/db/tb, IECEx Ex d/db/tb, UKEx Ex d/db/tb Groups IIC / IIIC T4 / T6 Rated for use in Gas & Dust Zone 1, 2, 21 and 22

Body Shape

Field Wireable Connection Head – Side Entry

Body Material

316L Stainless Steel

Contact Arrangement

SPCO / SPDT (Form C)

Contact Material

Palladium-Silver

Mounting Thread

5/8″-18 UNF (47.75 mm / 1.88″ long) c/w 2 x locknuts

Max Current

4A

Connection

Side Entry

Conduit Entry

1/2″ NPT

Termination

Wireable Connection Head

Certification & Approvals

IECEx, ATEX, UKEx Ex d/db/tb

Hazardous Location

Zone 1, 2, 21 and 22

Gas Group

IIC

Dust Group

IIIC

Temperature Class (T Rating)

T4 / T6

Operating Temperature

-60°C to +120°C / -76°F to +248°F

Sensing Range with Magnet

<12mm (0.47″)

Sensing Face Pressure Rating

2000psi / 138 bar

Environmental Protection

IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4X & 6P

Safety Rating

SIL 2 / SC3

Range (ferrous target)

2.5mm|0.10″

Repeatability

Approx. 0.05mm (0.002″)

Response Time

8 ms

Differential / Hysteresis

< 0.51mm (0.020″)
