Marechal 3138017 Ds3 Decontactor Inlet Poly Blue 3P+N+E 50A 440V 1

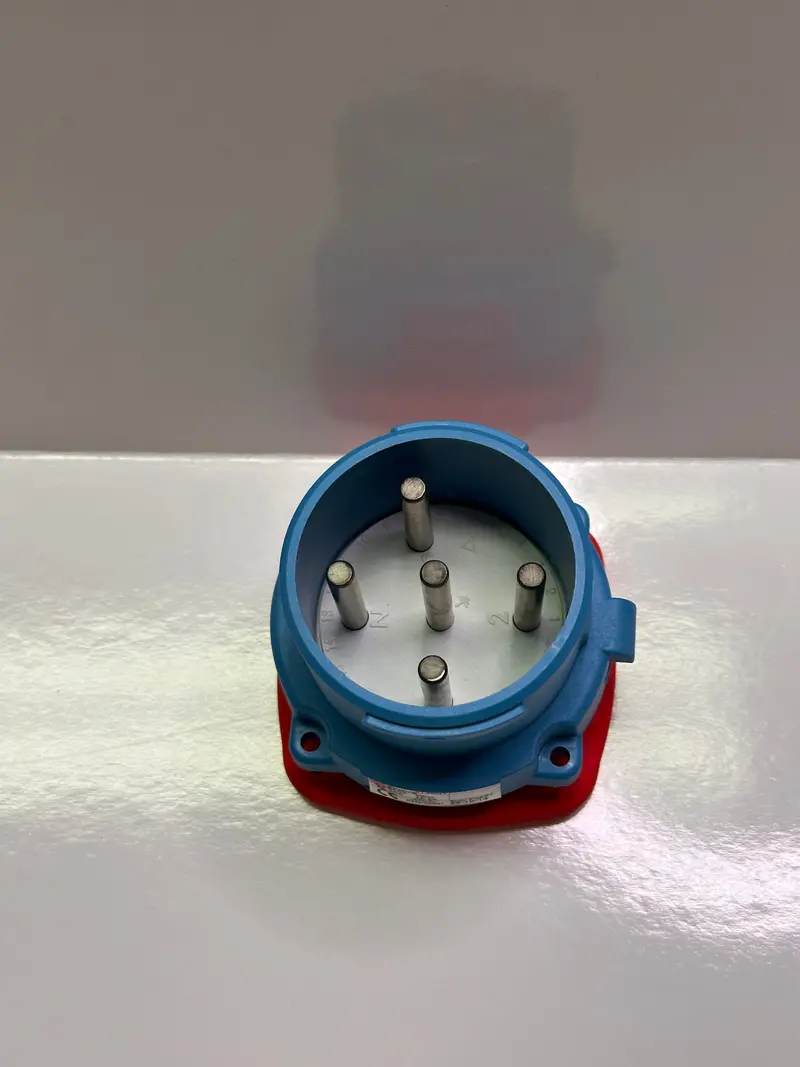

Marechal 3138017 Ds3 Decontactor Inlet Poly Blue 3P+N+E 50A 440V 2

Marechal DS3 Inlet Socket – 50A, 440 V, 3P+N+E, Polyamide Blue Housing (3138017)

Original price was: $264.00.Current price is: $88.00.

In stock

Quantity
SKU: P-MA-M-4907 Category: Brand:

Description

  SOCKET-OUTLET INLET
RATED CURRENT (A) 50 50
PHASING 3P+N+E 3P+N+E
MIN. RATED VOLTAGE (V) 220 380
MAX. RATED VOLTAGE (V) 440 440
IP RATING IP55 IP54
RATED VOLTAGE (V) 440 440
FREQUENCY AC AC
MARKING CE CE
MATERIAL POLY POLY
PRODUCT COLOUR BLUE BLUE
IK IK09 IK09
MIN. OPERATING TEMPERATURE (°C) -40 -40
MAX. OPERATING TEMPERATURE (°C) +60 +60
MIN. FLEXIBLE CONDUCTOR 6MM2 6MM2
MAX. FLEXIBLE CONDUCTOR 16MM2 16MM2
MIN. STRANDED CONDUCTOR 10MM2 10MM2
MAX. STRANDED CONDUCTOR 25MM2 25MM2
TYPE OF CONNECTION TO SCREW TO SCREW
N° OF KEYING POSITION 24 24
NOTCHES 01 01
COLOUR-CODED RING RED RED

*** Some inlets do not come with original boxes and screws
