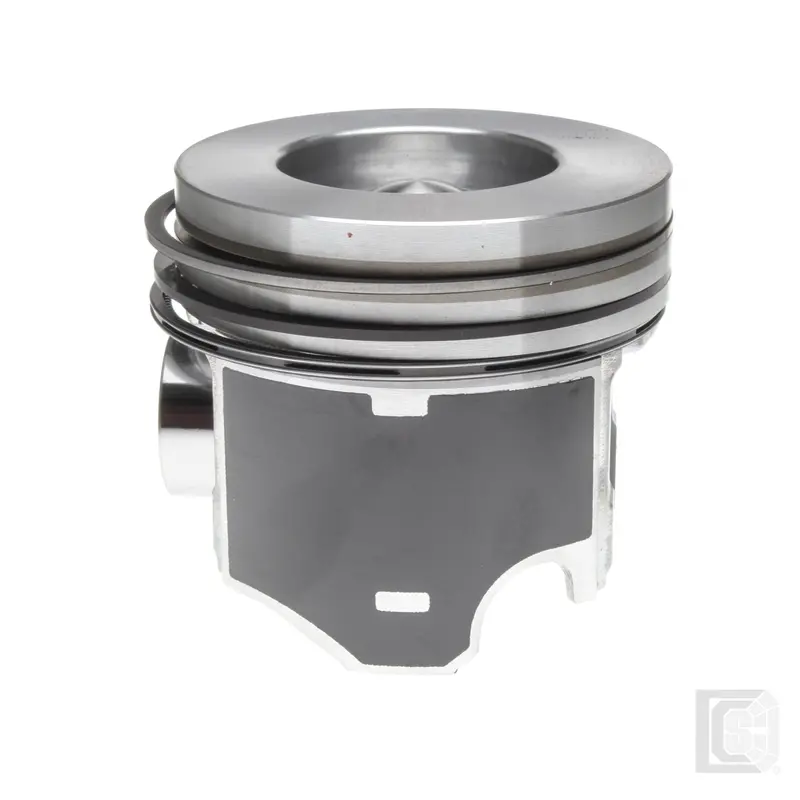

Mahle 224-3902WR.030 Piston Set (8-Piece) for Ford 6.0L Power Stroke – 0.030″ Oversize

Description

Mahle Engine Piston Set – 2243902WR030 (0.030″ Oversize)

The Mahle 2243902WR030 is a 0.030-inch oversized piston set designed for the 6.0L Power Stroke diesel engine, commonly used in 2003–2010 Ford Super Duty and E-Series vehicles. Made from premium aluminum alloy, these bowl-style pistons deliver the strength and durability needed for high-load, high-temperature diesel performance.

The coated skirt helps reduce friction and wear for extended engine life, and the oversized design is ideal for rebuilt engines requiring re-bored cylinders.

Specifications:

• Piston Size: 0.030″ Oversized

• Compression Height: 52.04 mm

• Top Ring Thickness: 2.30 mm

• Second Ring Thickness: 2.00 mm

• Oil Ring Thickness: 3.44 mm

• Piston Pin Diameter: 34.01 mm

• Head Type: Bowl

• Material: Aluminum

• Skirt Coating: Yes

• Includes: Pistons and pins (rings sold separately unless noted)

Fitment – Ford 6.0L Power Stroke Diesel:

• E-350 Club Wagon: 2004–2005

• E-350 Super Duty: 2004–2010

• E-450 Super Duty: 2004–2010

• Excursion: 2003–2005

• F-250 / F-350 / F-450 / F-550 Super Duty: 2004–2007
