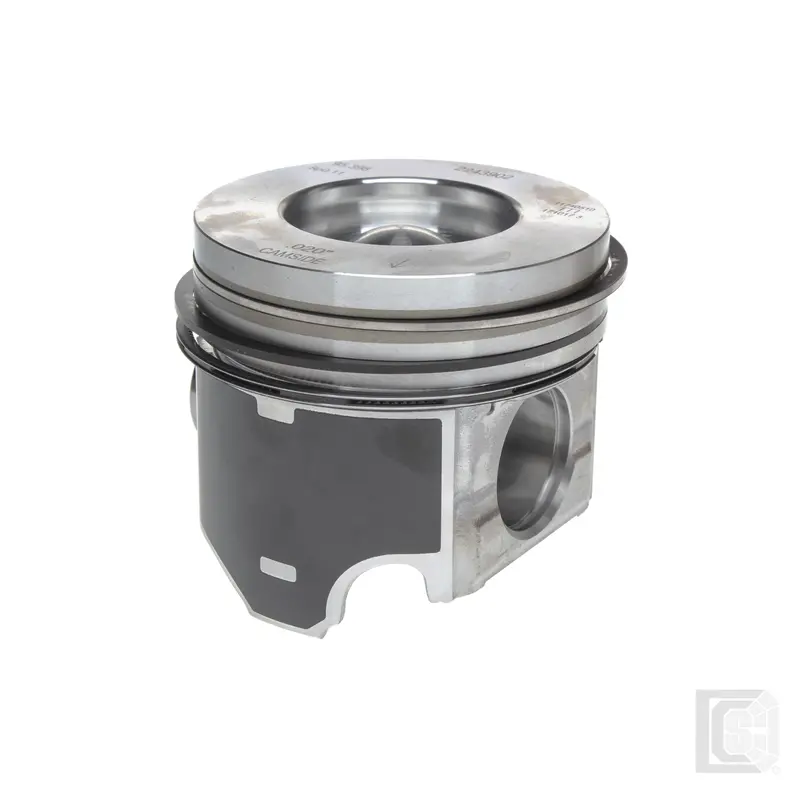

Mahle 224-3902WR.020 Piston Set (8-Piece) for Ford 6.0L Power Stroke – 0.020″ Oversize

Description

Mahle Engine Piston Set – 2243902WR020 (0.020″ Oversize)

The Mahle 2243902WR020 piston set is a 0.020-inch oversized solution for rebuilding 6.0L Power Stroke diesel engines, commonly found in 2003–2010 Ford Super Duty and E-Series vehicles. Made from high-strength aluminum with a bowl-style piston head, these pistons are built to handle high combustion pressure while delivering reliable performance.

The coated skirts reduce friction and wear, while the oversized design ensures a proper fit when cylinders have been bored during an engine rebuild.

Key Specs:

• Oversize: 0.020 inch

• Compression Height: 52.04 mm

• Piston Head Type: Bowl

• Material: Aluminum

• Skirt Coating: Yes

• Top Ring Thickness: 2.30 mm

• Second Ring Thickness: 2.00 mm

• Oil Ring Thickness: 3.44 mm

• Piston Pin Diameter: 34.01 mm

• Includes: Pistons and pins (piston rings sold separately unless noted)

Fitment – 6.0L Power Stroke Diesel (Ford):

• E-350 Club Wagon: 2004–2005

• E-350 Super Duty: 2004–2010

• E-450 Super Duty: 2004–2010

• Excursion: 2003–2005

• F-250 / F-350 / F-450 / F-550 Super Duty: 2004–2007
