Description

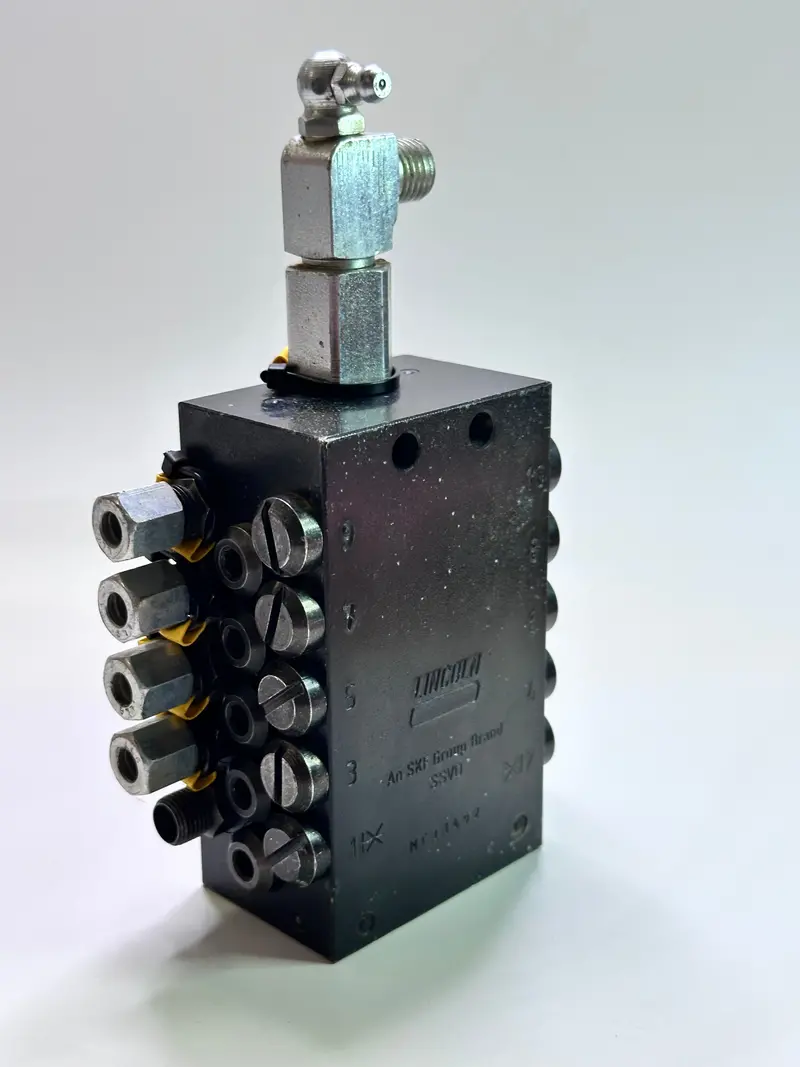

Parts not in original box and are sold as shown in photos.
| Function principle | block metering devices | |
| Outlets1) | 6-22 | |
| Lubricant | Grease up to NLGI 2 oil at least 40 mm²/s |
|
| Metering quantity2) per cycle and outlet | min 0,08 cm3 max 1,80 cm3 |
0.0042 in3 0.11 in³ |
| Operating temperature | –25 to +70 °C | –13 to +158 °F |
| Operating pressure | max. 350 bar | 5075 psi |
| Materials | black galvanized steel | |
| Connection inlet | G 1/8 or 1/8 NPTF | |
| Connection outlet3) | M 10 × 1 | |
| Dimensions | ||
| min | 70 × 60 × 40 mm | 2.75 × 2.36 × 1.57 in |
| max | 190 × 60 × 40 mm | 7.48 × 2.36 × 1.57 in |
| Mounting position | any | |
