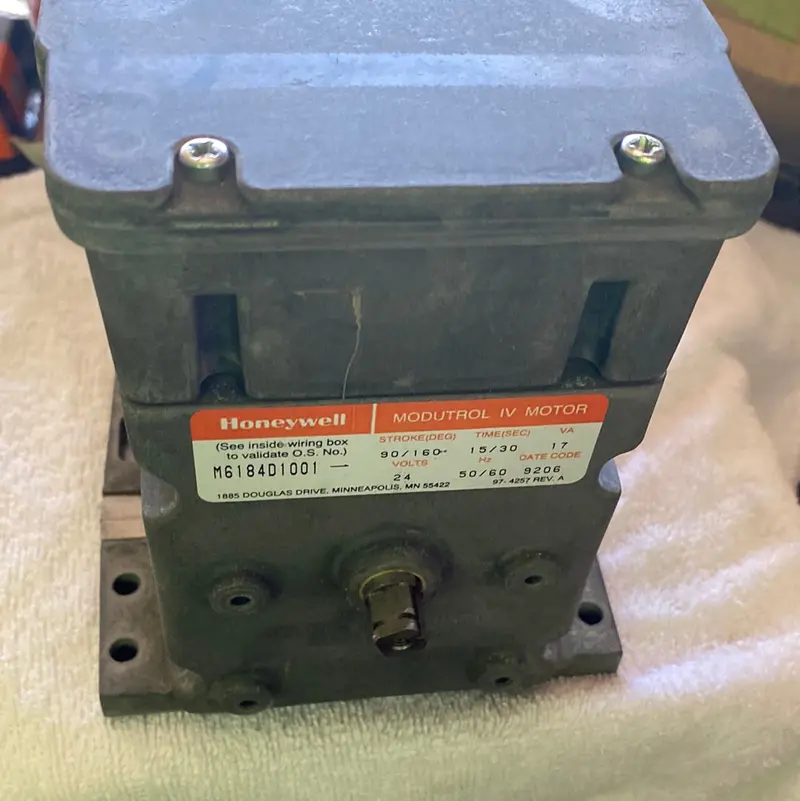

Description
- Application Type: Electric
- Fail Safe Mode: Non-Spring Return
- Control Signal: Floating
- Feedback: no
- Motor Shaft: Dual ended Shaft
- Stroke: Adjustable; 90 to 160 degrees, Asymmetrical
- External Auxiliary Switches Available: Yes
- Frequency: 50 Hz, 60 Hz
- Power Consumption Driving (VA): 15 VA
- Electrical Connections: Quick Connect Terminals
- Shaft Dimensions (in.): .375 in
- Shaft Shape: Square
- Mounting: foot-mounted
- Dimensions: 6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
- Temperature Range: -40 to 150F
- Deadweight Load on Shaft (Either End) (lb): 200 lbs
- Deadweight Load on Shaft (Combined on both shafts) (lb): 300 lbs
- Shaft Rotation (upon control signal increase): Dependent on wiring (normally closed)
- Auxiliary Switch Ratings AFL – 120 Vac: 7.2A
- Auxiliary Switch Ratings AFL – 240 Vac: 3.6A
- Auxiliary Switch Ratings ALR- 120 Vac: 43.2A
- Auxiliary Switch Ratings ALR- 240 Vac: 21.6A
