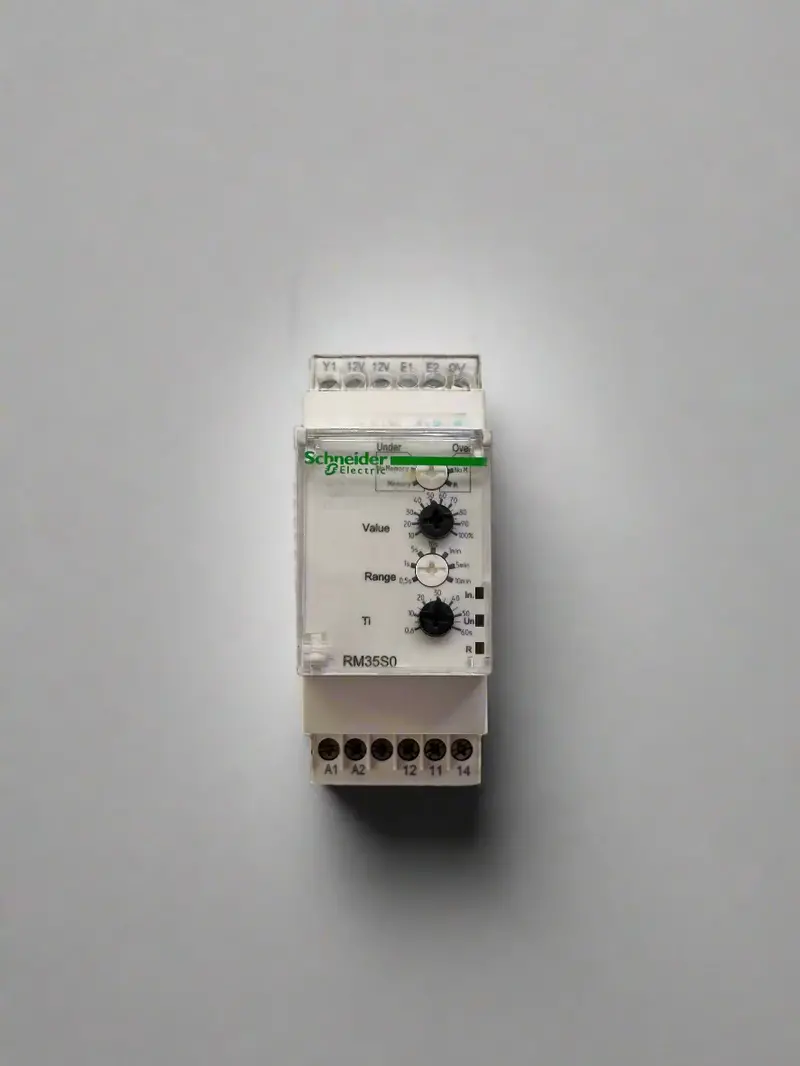

940525 RM35S0MW Speed Control Relay Module

Description

Main
Range of product Harmony Control Relays
Relay type Speed control relays
Product or component type Speed control relay
Relay name RM35S
Relay monitored parameters Overspeed
Under speed
Time delay range 0.6…60 s adjustable on energization delay (tolerance: 0…10 % of the full-scale value)
Switching capacity in VA 1250 VA
Minimum switching current 10 mA at 5 V DC
Maximum power consumption in
VA
5 VA AC
Measurement range 0.05…0.5 s
0.5…5 min
1…10 min
1…10 s
0.5…5 s
0.1…1 s
0.1…1 min
Utilization category AC-12 conforming to IEC 60947-5-1
AC-13 conforming to IEC 60947-5-1
AC-14 conforming to IEC 60947-5-1
AC-15 conforming to IEC 60947-5-1
DC-12 conforming to IEC 60947-5-1
DC-13 conforming to IEC 60947-5-1
DC-14 conforming to IEC 60947-5-1
Measurement range 0.05…600 s
time delay Adjustable 0.6…60 s Ti- inhibition time delay upon startup
