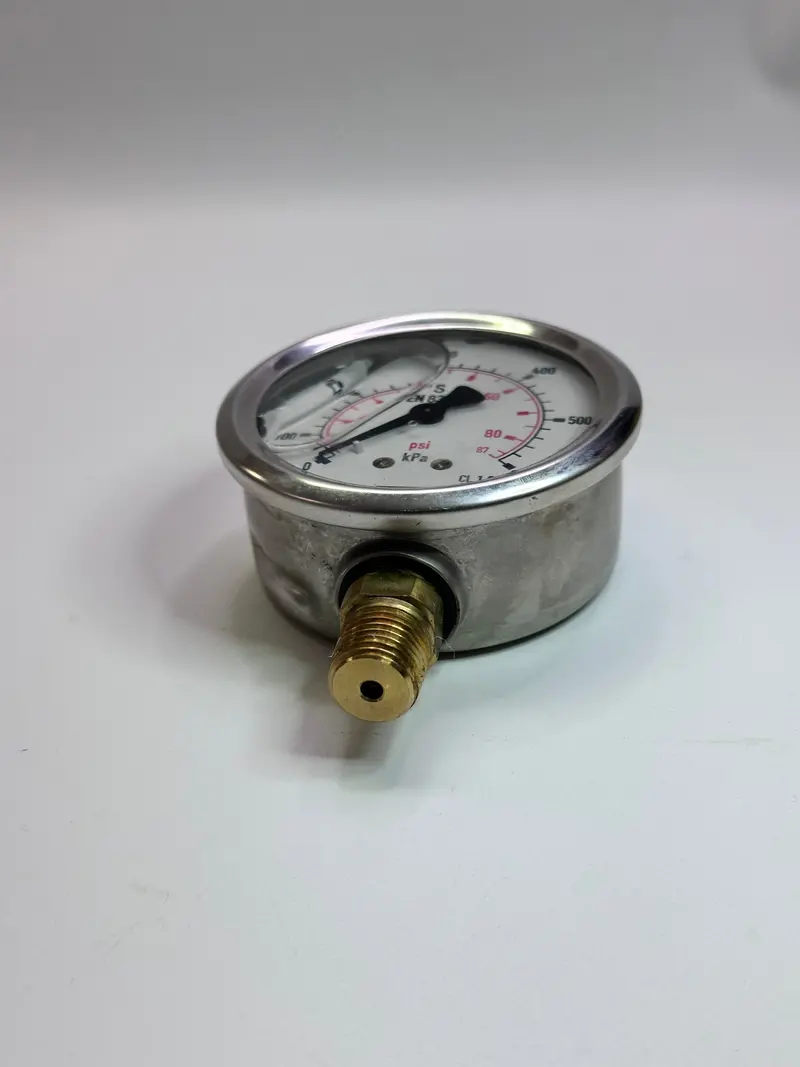

WIKA 213.53 Bourdon Tube Pressure Gauge – 0–600 kPa (0–87 psi), 1/4″ NPT, Liquid-Filled

Description

Applications
• For measuring locations with high dynamic pressure loads and vibrations
• For gaseous and liquid media that are not highly viscous or crystallizing and will not attack copper alloy parts
• Hydraulics
• Compressors, shipbuilding
• Not suitable for Oxygen Service
Specifications
• Bourdon tube pressure gauges, liquid filled, stainless steel case, model 213.53.050/063
• Model: 213.53
• Specifications according to data sheet: PM 02.12
• Measuring system: copper alloy
• Case: stainless steel 1.4301
• Case: Crimp ring case (version 53)
• Nominal size: 063 mm
• Scale range: 0…600kPa/psi
• 2nd Scale or Special Scale: 2nd scale psi
• Process connection: R 1/4 – IS07 (DIN2999)
• Connector location: Direct Bottom
• Restrictor: Brass, D 0.5
• Accuracy class: class 1.6
• Overpressure safe: standard
• Case filling fluid: glycerin
• Pointer: plastic, black (double division)
• Window: plastic, clear
• Packaging: standard packing
• Dial: plastic, white, with stop-pin
• Dial description:
• Pressure Gauge Standard: International (standard Europe)
• color for 1. scale (outside): black
• color for 2. scale (inside): red RAL 3020
• dial background: White
• Manufacturer logo: *WIKA*
• stop pin on dial: at zero
• norm-mark on dial: *EN 837-1*
• safety mark on dial: *S*
• accuracy class on dial: *Cl.1.6*
• Not suitable for Oxygen Service
