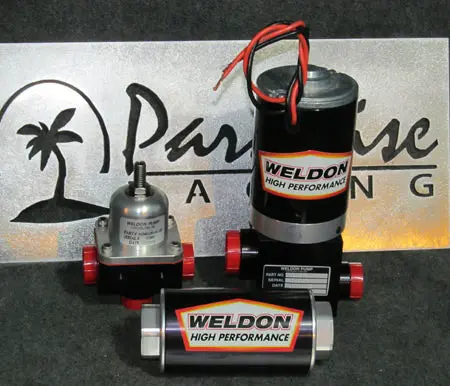

Weldon A2040 High-Flow Fuel Pressure Regulator

Description

This fuel pressure regulator is a must and is an industry staple when it building high horse power boosted applications using a hi-flow electric fuel pump!!!

—

Weldon A2040 Fuel Pressure Regulator

The choice of many budget conscious racers, the Weldon 2040 out performs many of the regulators on the market!!!

• Fastest response rate
• Provides stable fuel delivery for the most demanding requirements
• All Weldon Regulators maintain steady fuel delivery during dramatic changes in fuel demand, such as WOT conditions, boost application and gear changes
• 4 different versions available to cover 4-200 psi
• .281″ bypass orifice
• Hardened steel ball and replaceable steel seat
• Fluorosilicone diaphragm
• Compatible with most racing fuels including ethanol, and methanol.
• 1/8″ NPT Gauge Port
• 1/8″ NPT manifold pressure reference port
• Fuel pressure increases on a 1:1 ratio with boost
• two -10 pressure ports
• -8 return port
• Replaceable / interchangable internal components
• User serviceable
• For use with all Weldon Pumps as well as pumps from other manufacturers
• Mil-Spec clear anodized cover
