Weg W22 Ie3 0.37 Kw 4P 71 3Ph 220-230-240/380-415//440-460 V 50 Hz Ic411 - Tefc - B5r(E) 1
Weg W22 Ie3 0.37 Kw 4P 71 3Ph 220-230-240/380-415//440-460 V 50 Hz Ic411 - Tefc - B5r(E) 2

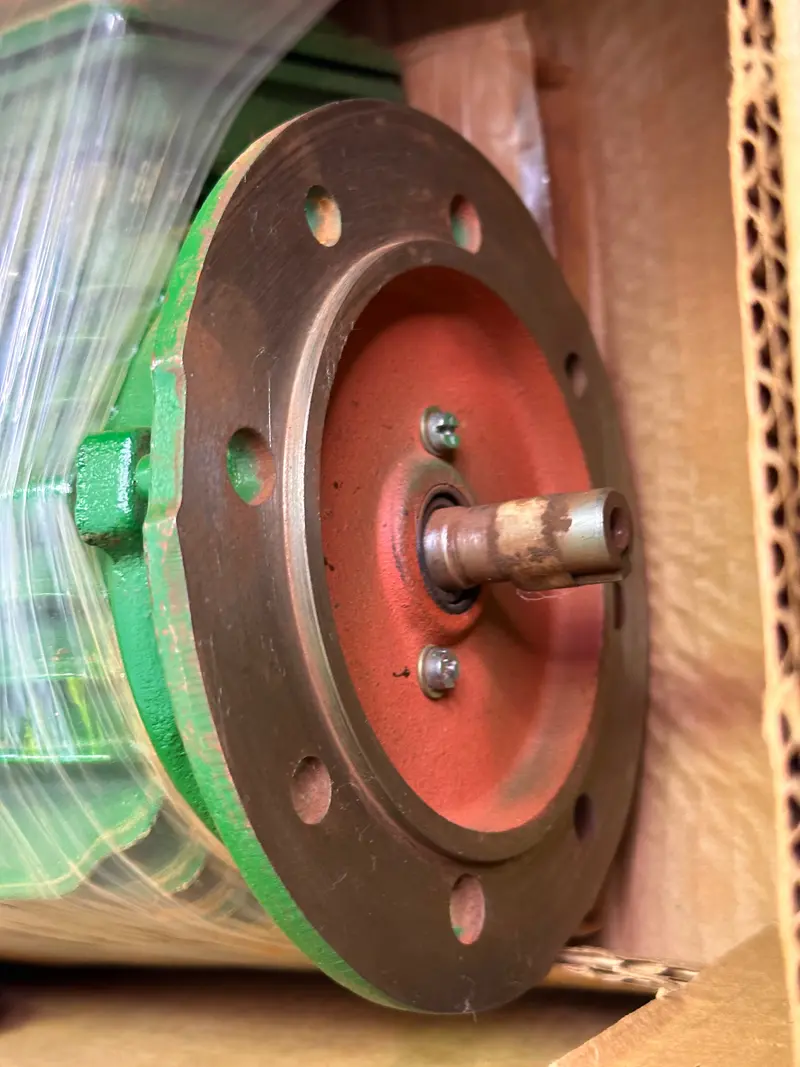

WEG W22 IE3 Motor: 0.37 kW, 4-Pole, 71 Frame, 3-Phase, TEFC Enclosure (B5R Mount)

Original price was: $145.20.Current price is: $72.60.

In stock

Quantity
SKU: P-WE-W-5237 Category: Brand:

Description

Frame 71
Output 0.37 kW (0.5 HP)
Number of Poles 4
Frequency 50 Hz
Rated speed 1345 rpm
Slip 10.33 %
Rated voltage 220/380 V
Rated current 1.88/1.09 A
L. R. Amperes 6.97/4.03 A
LRC 3.7
No load current 1.36/0.790 A
Rated torque 0.268 kgfm
Locked rotor torque 200 %
Breakdown torque 200 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 0.0006 kgm²
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 – TEFC
