Description
| Sensor/detection principle: | Through-beam photoelectric sensor |
| Dimensions (W x H x D): | 60 mm x 105 mm x 105 mm |
| Housing design (light emission): | Rectangular |
| Sensing range max.: | 0 m … 350 m |
| Sensing range: | 0 m … 300 m |
| Type of light: | Infrared light |
| Light source: | LED 1) |
| Time type: | Time delay off, ON and OFF delay, Switch on delay |
| Delay time: | Adjustable via time delay selector switch: 0.5 … 12 s |
| Angle of dispersion: | Ca. 0.9 ° |
| Adjustment: | Potentiometer |
| Light spot size (distance): | Ø 4.5 m (300 m) |
| Supply voltage: | 24 V AC/DC … 240 V AC/DC 1) |
| Power consumption, sender: | ≤ 3 VA |
| Power consumption, receiver: | ≤ 3 VA |
| Switching output: | Relay 2) |
| Output function: | Change-over contacts |
| Switching mode: | Light/dark-switching 3) |
| Output characteristic: | Electrically isolated |
| Switching mode selector: | Light-/dark-switching selectable via time delay selector switch |
| Switching current (switching voltage): | 4 A (24 V DC), 4 A (240 V AC) |
| Response time: | ≤ 10 ms |
| Switching frequency: | 10 Hz 4) |
| Connection type: | Terminal connection with PG13,5, 6-pin |
| Circuit protection: | A, C 5) 6) |
| Protection class: | I |
| Weight: | 1,600 g |
| Front screen heating: | – |
| Special device: | – |
| Housing material: | Metal |
| Enclosure rating: | IP 67 |
| Special features: | Pulsating |
| Usage category: | AC-15, DC-13, According to EN 60947-1 |
| Ambient operating temperature: | -25 °C … 55 °C 7) |
| Ambient storage temperature: | -40 °C … 70 °C |
| UL File No.: | NRKH.E181493 & NRKH7.E181493 |

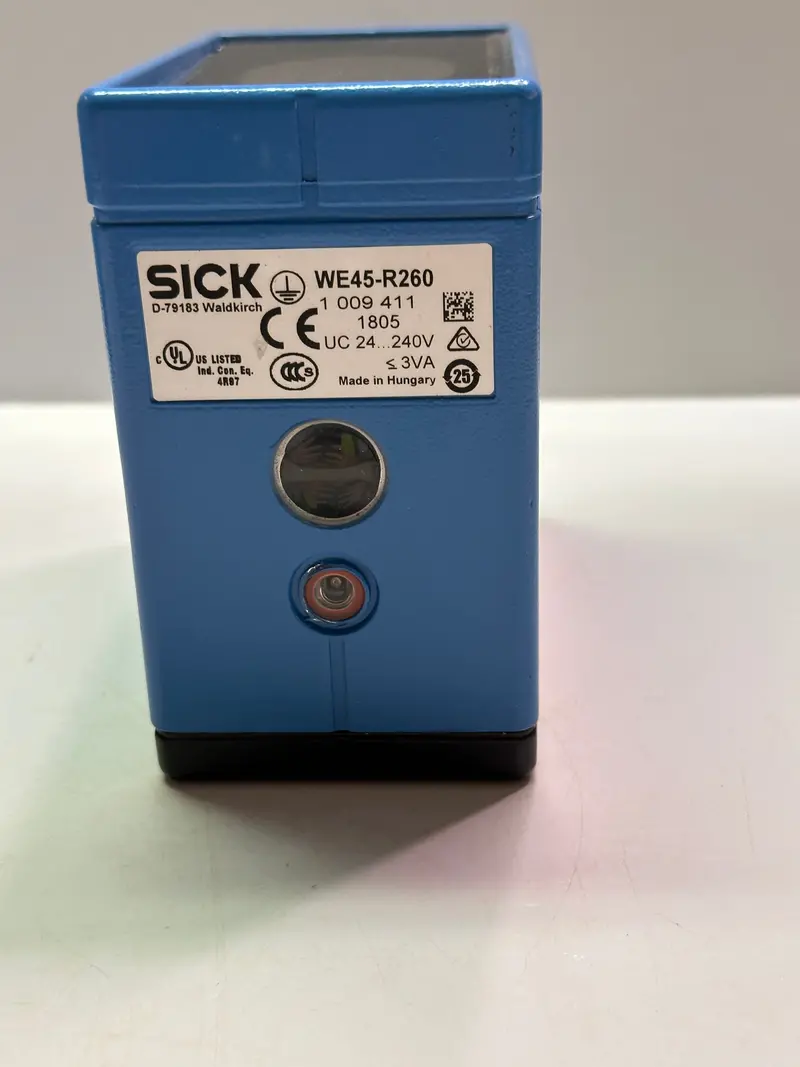

**One sensor has some scratches from storage and is not in original packaging.
