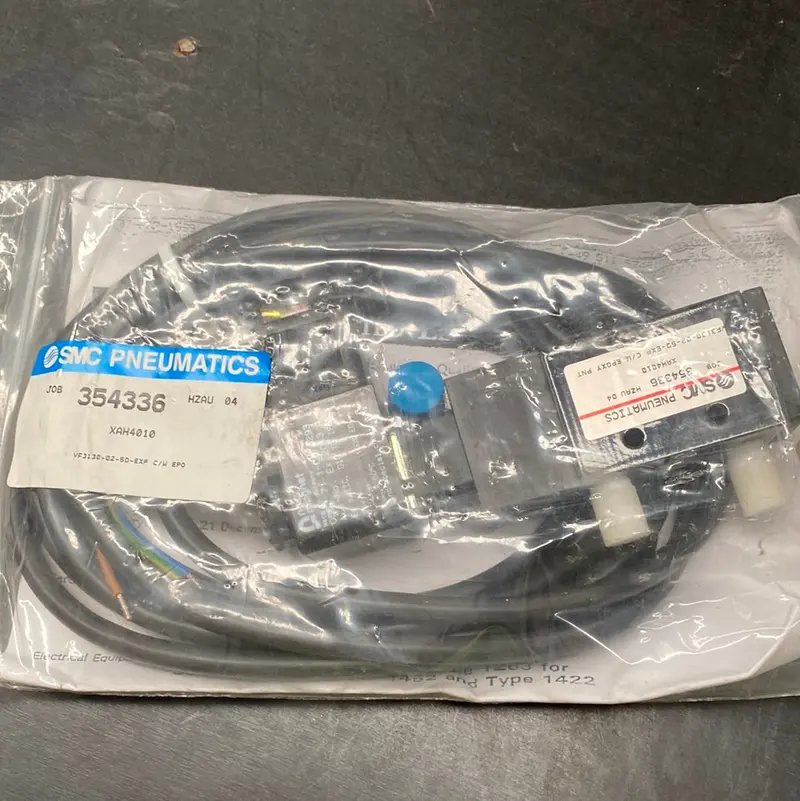

VF3130-5D-02 Single-Pilot Solenoid Valve – 4/5-Way VF3000 Series

Description

Valve TypeSolenoidPort Type1/4″ RCNumber of Ports/Way5 Port | 4 WayNumber of Positions2 PositionActuationSolenoid – Air Pilot | Air Pilot – Spring ReturnVoltage24 VDCMediaPneumaticMaximum Pressure130 PSIOperating Pressure Range22 To 130 PSIOperating Temperature Range14 To 122 Deg FSeal TypeRubberBody MaterialAluminumInch – MetricInchOther Features1/0.75 Cv Factor | Air Fluid | Individual Exhaust Pilot | DIN Terminal with Connector | In/Out PositionCategory – BDIHydraulic and Pneumatic ValveLong DescriptionSolenoid Valve; 1/4″ RC Port; 5 Port | 4 Way; 2 Position; 24 VDC; Pneumatic; Solenoid – Air Pilot | Air Pilot – Spring Return; 130 PSI; 14 To 122 Deg F; Rubber Seal; AluminumOverall Height2.677 Inch | 68 MillimeterOverall Width1.039 Inch | 26.4 MillimeterOverall Length5.157 Inch | 131 Millimeter
