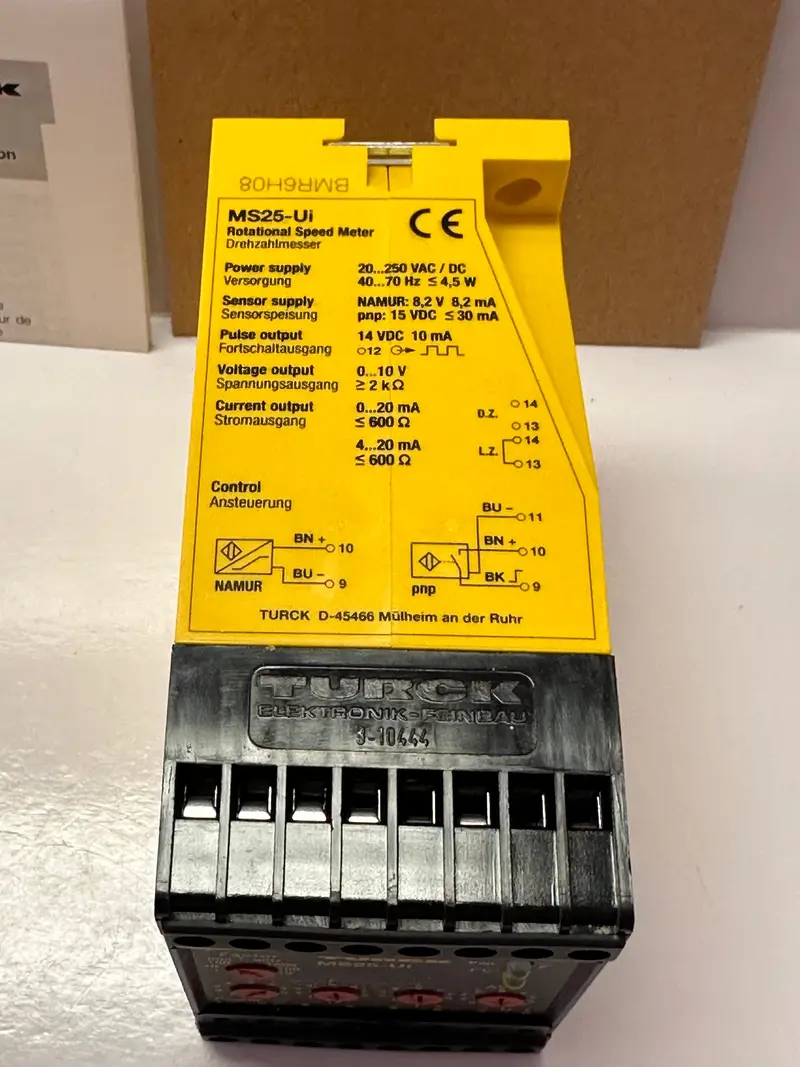

Turck MS25UI Rotational Speed Monitor with NIB Interface for Conveyor & Drive Systems

Description

• Frequency to current/voltage conversion
• Monitoring range: 10 mHz… 1 660 Hz (0.6…100 000 ^min-1)
• Line monitored for wire-break/short-circuit

• Removable terminal blocks
• Excellent temperature stability
• Pulse output
• Floating averaging for signal steadying

• Complete galvanic isolation
• Input reverse-polarity protected

• Frequency to current/voltage conversion
• Monitoring range: 10 mHz… 1 660 Hz (0.6…100 000 ^min-1)
• Line monitored for wire-break/short-circuit

• Removable terminal blocks
• Excellent temperature stability
• Pulse output
• Floating averaging for signal steadying

• Complete galvanic isolation
• Input reverse-polarity protected

• Frequency to current/voltage conversion
• Monitoring range: 10 mHz… 1 660 Hz (0.6…100 000 ^min-1)
• Line monitored for wire-break/short-circuit

• Removable terminal blocks
• Excellent temperature stability
• Pulse output
• Floating averaging for signal steadying

• Complete galvanic isolation
• Input reverse-polarity protected

• The MS25-UI is a digital to analog converter.

• It converts the input frequency into an analog current or voltage output relative to the preset measuring range.

• The device can accommodate NAMUR sensors, 3-wire PNP sensors or other voltage sources with pulse levels between 9 and 30 VDC.

• The speed range, from 0.6-100,000 pulses/min or 0.01-1660 Hz, is adjusted digitally using four multi-position switches.

• The voltage output supplies 0-10 V and the current output supplies 0/4-20 mA.

• The current output may be programmed for 0-20 mA operation by linking terminals 13 and 14.
