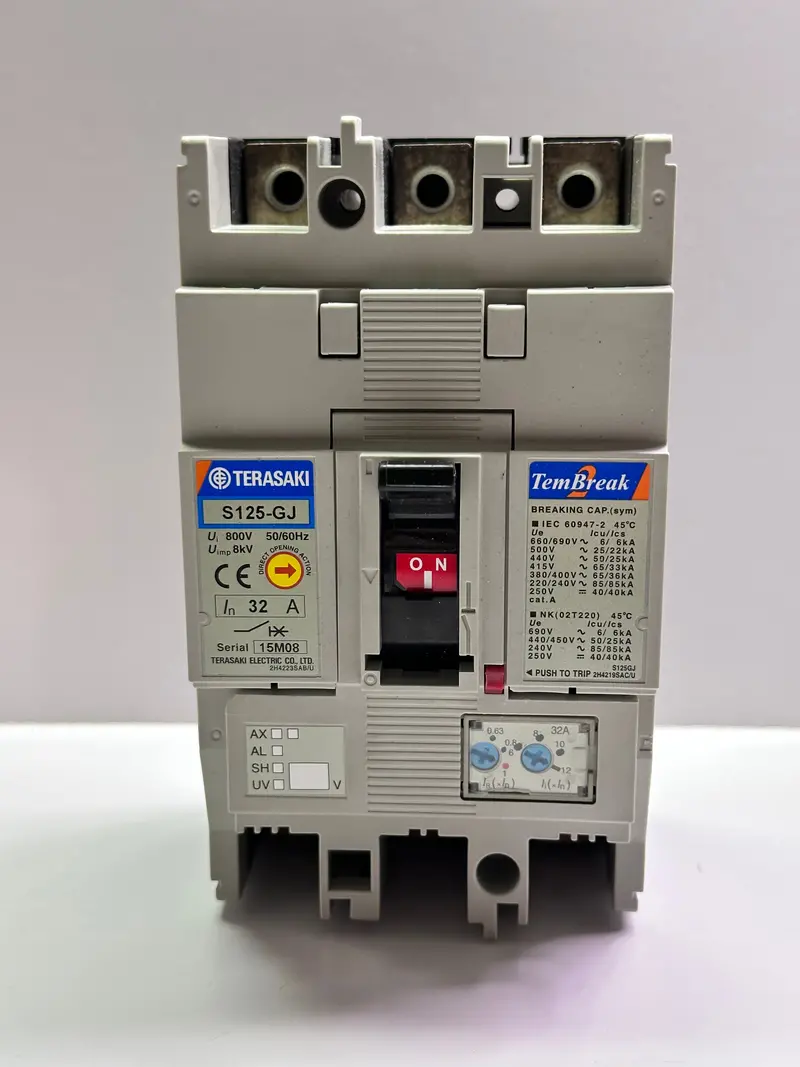

Terasaki S125-GJ TEMBREAK2 FC Circuit Breaker – 32A, 3-Pole

Description

Rated current In 32ANumber of poles 3Max. rated operation voltage Ue AC690 VRated ultimate short-circuit breaking capacity lcu at 415 V, 50 Hz65 kARated service short-circuit breaking capacity lcs at 400 V, 50 Hz36 kAType of protection trip unit Thermal/magnetic releaseTrip curve Adj. thermal, adj. magneticFrame size rating125 ALong time overload protection adjustment range 20-32 AInstantaneous protection adjustment range192-384 ARated frequency50-60 HzRated insulation voltage Ui800 VSuitable for isolation YesRated short circuit breaking capacity, Icu 690V AC6 kARated short circuit breaking capacity, Ics 690V AC6 kARated impulse withstand voltage Uimp8 kVReverse connection of supply possible YesElectrical life at Un, In (service cycles) 30000 cycles
