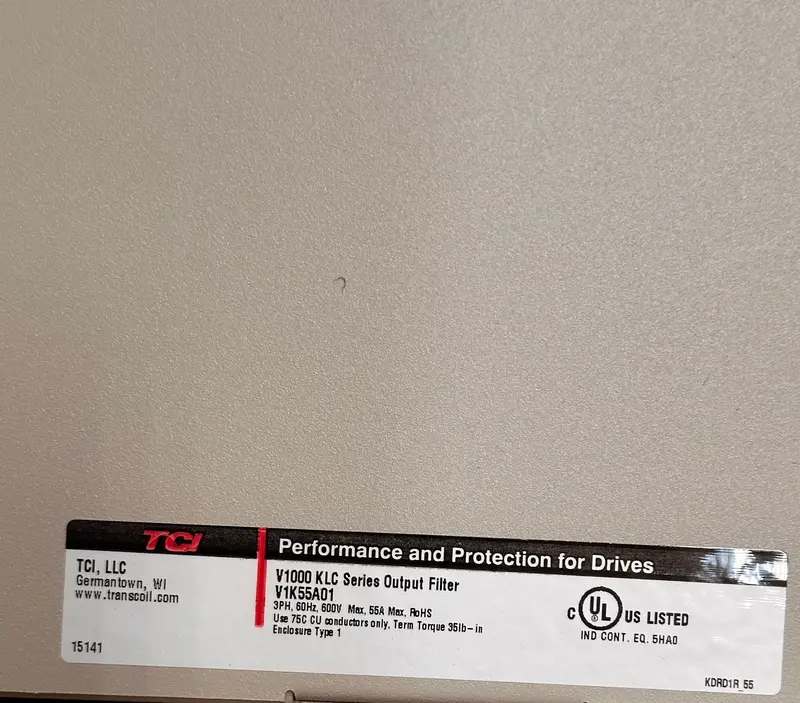

TCI V1K55A01 V1000 KLC-Series DV/DT Output Filter for Motor Protection – New in Box

Description

Series: V1K

Current Rating: 55A

Enclosure: A01 – UL Type 1

Technical Specifications
Current Range 2 – 750 Amps; 208 – 600 VAC
Carrier
Frequency
2 – 4 kHz (consult TCI for applications over 8
kHz if the cable lengths exceed 400 feet)
Insulation Rating 600 V Class
Insulation Class Class H (180° C) or better
Efficiency ≥ 98%
Lead Length Up to 1,000 ft (consult factory for
applications above 1,000 feet)
Fundamental
Frequency
0 – 60Hz (derating required for applications
up to 120Hz)
Over-Load Rating 200% rated current for 2 minutes per hour
150% rated current for 5 minutes per hour
Environmental Conditions
Ambient
Temperature Enclosed: 40° C (104° F)
Operating Altitude 2,000 m (6,600 ft)
Derating necessary above 2,000 m
Reference Technical Standards
Agency Approvals cULus Listed
Enclosure Options Open, UL Type 1, UL Type 3R
