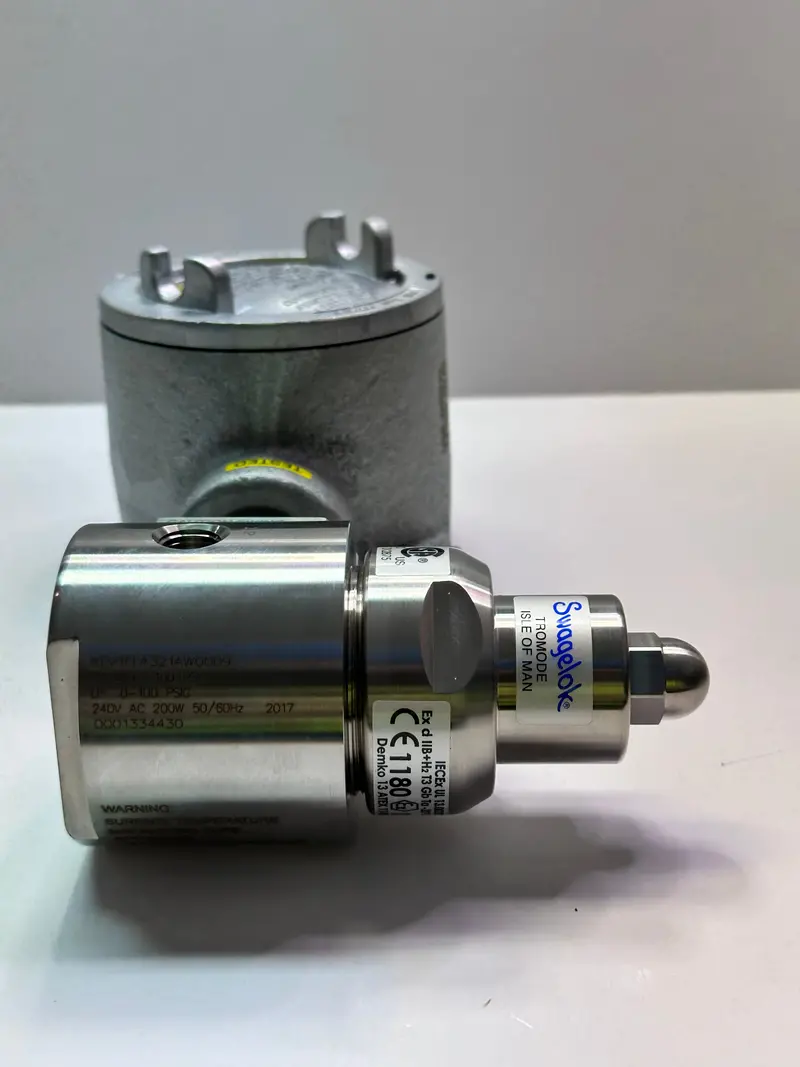

Swagelok KEV1FFA321AW0009 Electronically Heated Vaporizing Regulator

Description

KEV

1 – 316SS

F – 0-100psig

F – 100psig (6.8 bar)

A – Side Mount

3 – = 1/8 in. female NPT inlet; 1/4 in. female NPT outlet(s)

2 – PEEK

1 – 0.02

A – = Alloy X-750 diaphragm (outlet pressures up to 500 psig [34.4 bar])

W – = Antitamper nut, side mount

0 – No Valve

0 – No Connections

0 – No Gauges

9 – 200W

Maximum Inlet Pressure	3600 psig (248 bar)
Pressure Control Ranges	0 to 10 psig (0.68 bar) through 0 to 3600 psig (248 bar)
Flow Coefficient	0.02 or 0.06
Electrical	Supply: 120 and 240 V (ac) (± 10 %), 50/60 Hz Heater Ratings: 50, 100, 150, and 200 W
Control Temperature Ranges	75 to 380°F (23 to 193°C)
Explosive Atmosphere / Hazardous Location Certification	ATEX (Europe) and IECEx (international)—Group II, Category 2G, Ex db IIB+H2 T3 Gb Ambient temperatures: –4 to 140°F (–20 to 60°C) CSA (Canada and USA)—Class I, Div 1, Groups B, C, and D; T3; CSA Encl Type 4 Ambient temperatures: –58 to 122°F (–50 to 50°C)
