Description

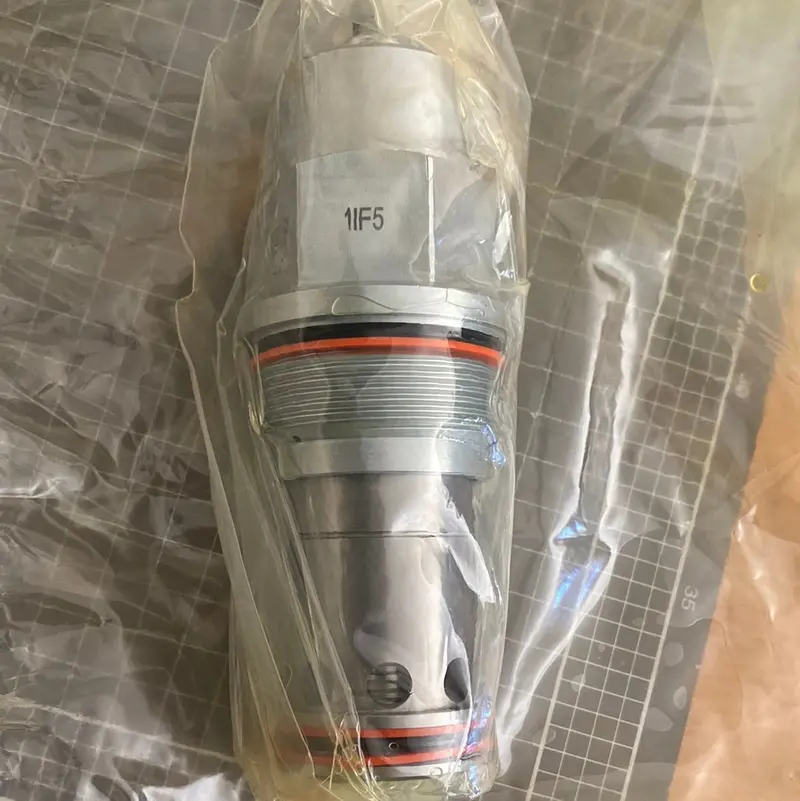

Pilot-operated, balanced piston relief valve
Capacity: 760 L/min. | Cavity: T-18A
| actory Pressure Settings Established at | 15 L/min. |
| Maximum Operating Pressure | 350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 80 cc/min.@70 bar |
| Response Time – Typical | 10 ms |
| Adjustment – No. of CW Turns from Min. to Max. setting | 5 |
| Valve Hex Size | 41,3 mm |
| Valve Installation Torque | 474 – 508 Nm |
| Adjustment Screw Internal Hex Size | 4 mm |
| Locknut Hex Size | 15 mm |
| Locknut Torque | 9 – 10 Nm |
