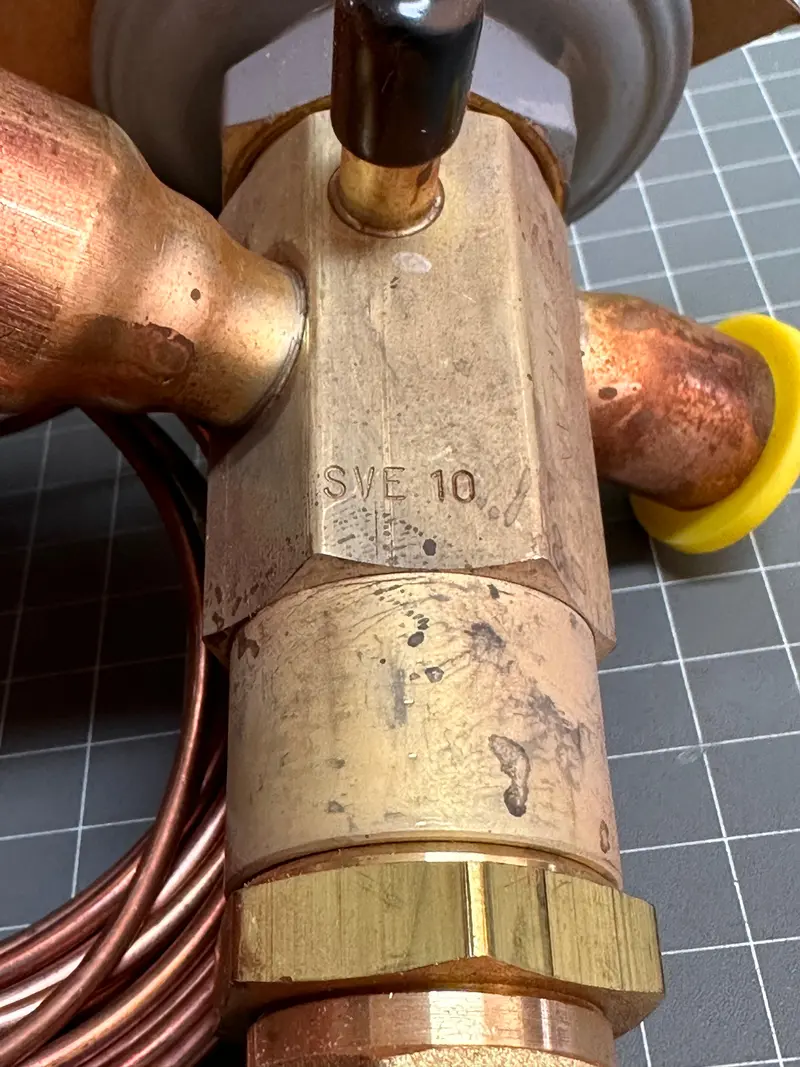

Sporlan SVE-10-GA ODF Expansion Valve – 5″ × 7″, 10-Foot Length (P/N #128493)

Description

SVE-10-GA  5X7 ODF 10FT

• Outlet Connection Size (inch): 7/8″ ODF
• Capillary Length (m): 1.524 m
• Inlet Connection Size (inch): 5/8″ ODF
• Capillary Length (inch): 5′
• Application: Air Conditioning
• Refrigerant Type: R-22
• Nominal Capacity (ton): 10 ton
• Equalizer Method: Externally Equalized
• Thermostatic Charge: GA
• Model Number: SVE-10-GA 5X7 ODF 5′
• Application: Air Conditioning
• Product Type: S- Valve
• Refrigerant Type: R-22
• Thermostatic Charge: GA
• Evaporator Temperature: 40 °F (nom), 5 °C (nom)
• Liquid Temperature: 100 °F (nom), 37.8 °C (nom)
• Pressure Drop: 100 psi (nom), 6 bar (nom)
• Nominal Capacity: 10 ton
• Inlet Connection Size: 5/8″ ODF inch
• Outlet Connection Size: 7/8″ ODF inch
• Maximum Operating Pressure: 31 bar, 450 psi
• Equalizer Connection Type: Externally Equalized
• Capillary Tube Length: 1.524 m, 5′ inch
• Strainer Type: 12 Mesh Permanent
• Filter Element Type: 83
