Description

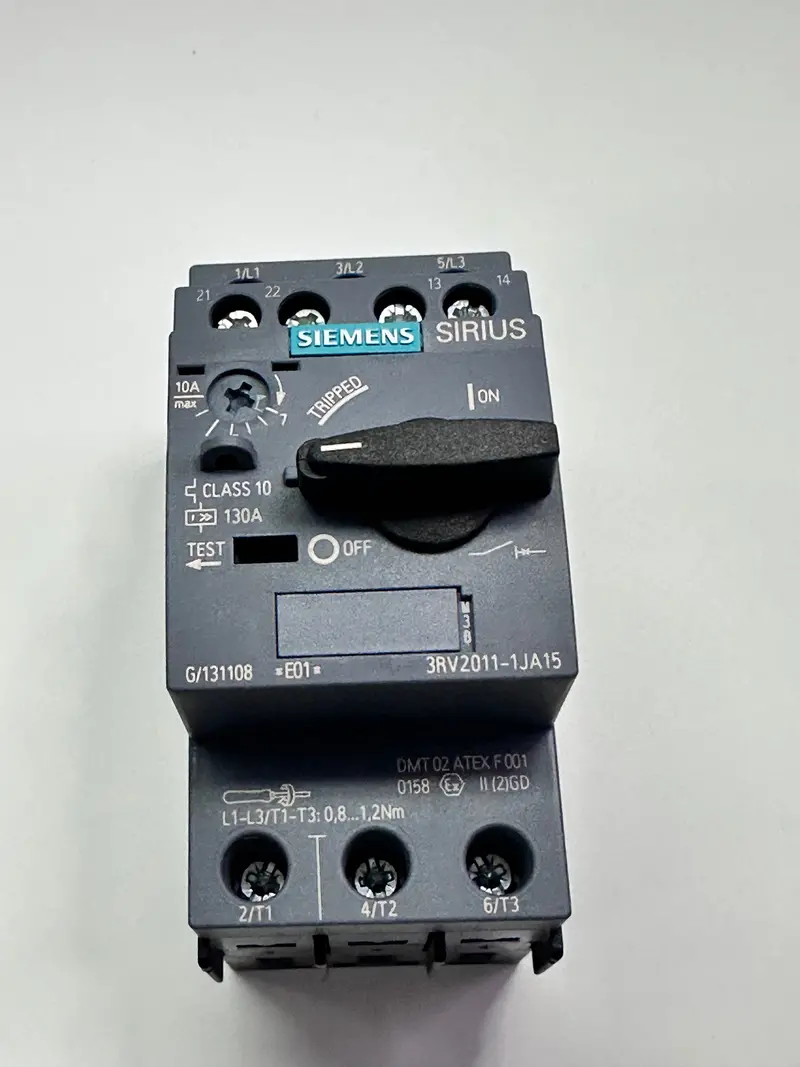

| Circuit breaker size S00 for motor protection, CLASS 10 A-release 7…10 A N release 130 A screw terminal Standard switching capacity with transverse auxiliary switches 1 NO+1 NC |
| Brand | Siemens | |
| Current Rating | 7 → 10 A | |
| Range | SIRIUS 3RV | |
| Motor Protection Component | Circuit Breaker | |
| Supply Voltage | 690 V | |
| Series | 3RV2 | |
| Overall Width | 45mm | |
| Overall Depth | 97mm | |
| Minimum Operating Temperature | -20°C | |
| Voltage Rating | 690 V | |
| Maximum Operating Temperature | +60°C | |
| Better World Claim | Alternative materials, Extended product life, Saves energy | |
| Breaking Capacity | 100 kA | |
| Better World Product | Yes | |
| Terminal Type | Screw | |
| Number of Poles | 3 | |
| Size | S00 |
