Description
S/N: 28 852
Type no.: SC120
Power Supply: 120VDC
Input: 16 = 4 – 20mA (51Ω)
Output: = 0 – 10V (100kΩ min).
Action: 1 – Direct
Options: 00 – None

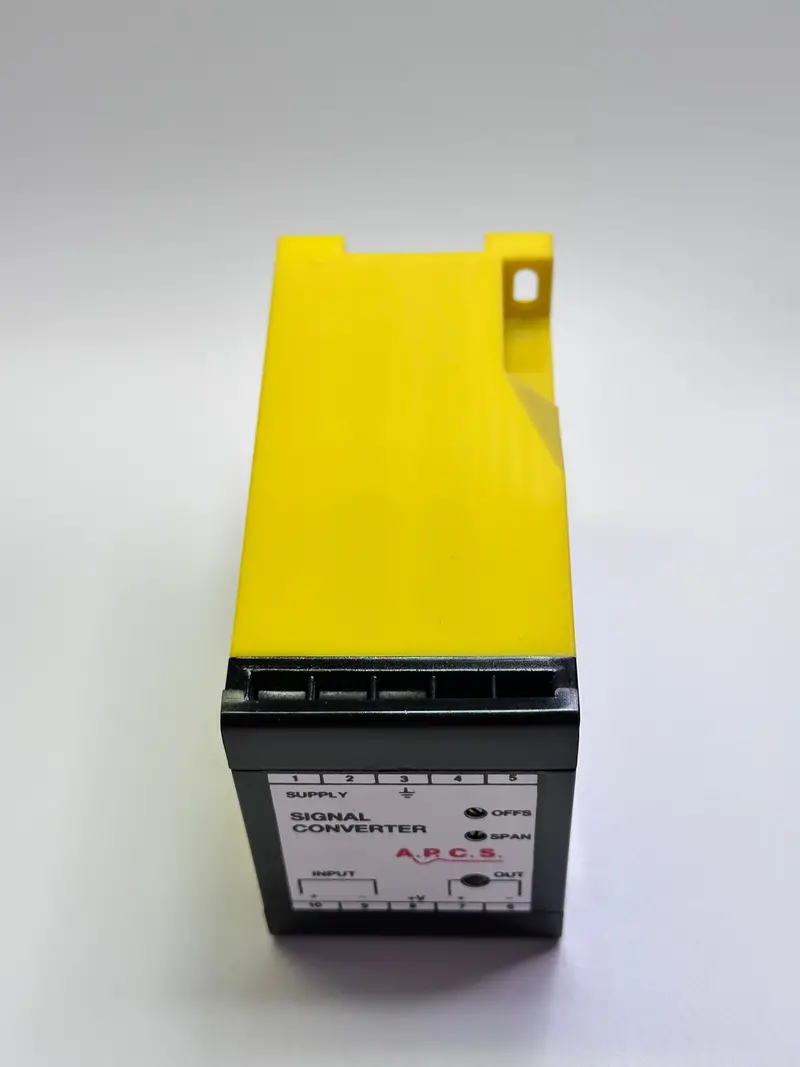

SC120 converts DC input signals and functions to standard DC signals, and features:
- Input options for peak hold, maximum/minimum selection, adder or subtractor.
- Special function options include external ratio adjustment, rate of decline, track & hold and averaging.
- Output up to 18Vdc or 50mAdc.
- Power supply isolation 2kV rms, input/output isolation not provided.
- Designed for single (factory set) input/output combinations.
- Front adjustments for span and zero.
- Sensor excitation.
- All common AC or DC supplies.
General Specifications
Size: 52 W x 70 H x 110 D (mm).
Mounting: DIN-Rail, gear plate.
Termination: Screw terminals on front.
Protection class: IP40.
Weight: 0.300 kg.
Housing material: ABS.
Accuracy: 0.2% of span.
Front “OFFS” adjust: ±20% typical
Front “SPAN” adjust: ±20% typical
Temperature effect: 0.01% per °C.
Operating temp. range: -10…+60°C.
Output load effect: less than 0.2% up to max. load.
Output loop drive: 10mA into 0 – 1.8kΩ.
20mA into 0 – 900Ω.
50mA into 0 – 360Ω.
Input / output isolation: None.
Power requirement: 3W.
Power supply isolation: 2kV rms.
Electromagnetic compatibility: Complies with AS/NZS 4251.1 (EN 50081.1)
