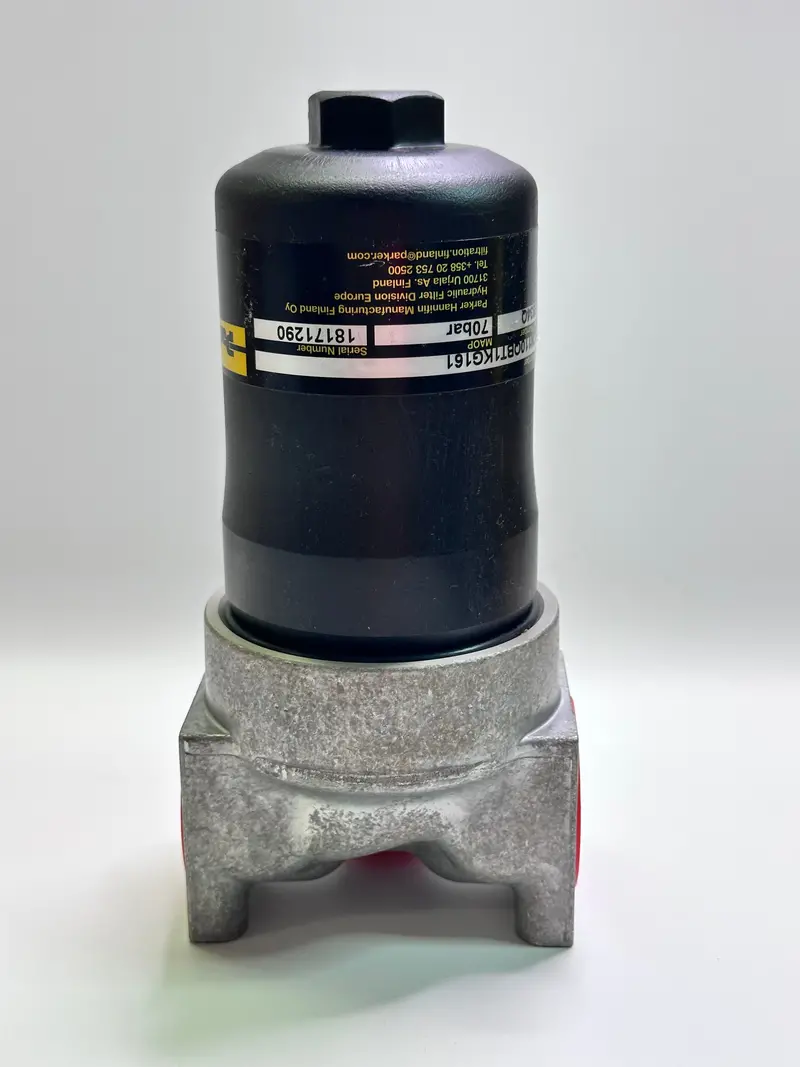

Description
| Flow Rate: | 60 l/min (16 gal/min) |
| Filter Element Type: | 10Q Microglass |
| Seal Material: | Nitrile |
| Port Connection Type: | G1″ |
| Specifications Met: | CE marked indicator |
| Bypass Valve Pressure Rating: | 3.5 bar (50 psi) |
| Options: | No drain |
| Micron Rating: | 10 µm |
| Indicator Type: | Electrical indicator with 7/8-14UNF-2A thread |
| Indicator Pressure Setting: | 2.5 bar |
| Mounting Style: | Inline |
| Pressure Rating: | 1000, 69 |
| Port Type: | SAE-12 straight threads, 3/4” NPT, SAE-16 straight threads, 1” NPT, 1-1/2” NPT, SAE-24 straight threads, Flange face, SAE 2”, Code 6, 2” NPT, SAE-32 straight threads |
| Housing Material: | Aluminum |
| For Fluid Type: | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258. |
| Maximum Operating Temperature: | 225.0, 107.0 |
| Weight: | See tech specifications tab after model selected for weight |
| Compatible Element: | See tech specifications tab after model selected for replacement element part number. |
| Product Style: | Hydraulic Filter |
