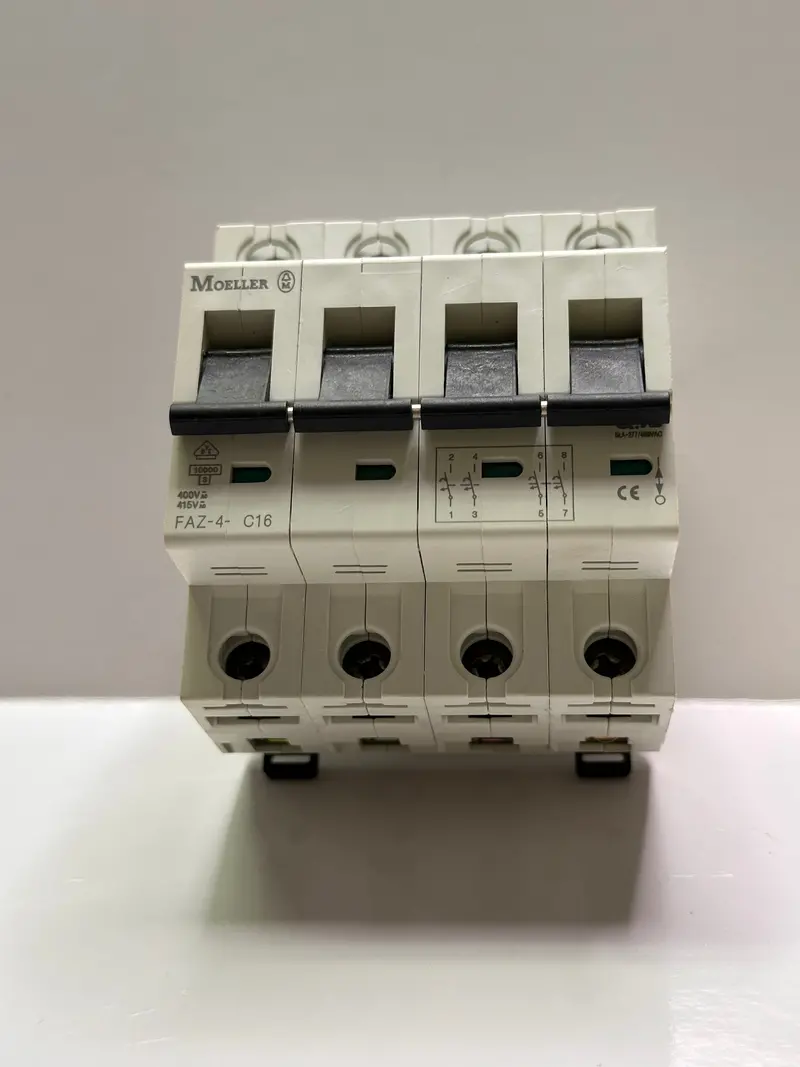

Moeller FAZ-C16/4 4-Pole 16A Miniature Circuit Breaker (MCB) – XEffect Series

Description

Voltage typeACVoltage rating240 V AC / 415 V ACVoltage rating at DC60 V DC (per pole)Voltage rating (IEC/EN 60898-1)415 V ACVoltage rating (UL)480Y/277 VRated operational voltage (Ue) – max400 VOperational voltage (IEC/EN 60947-2) – max440 V ACRated insulation voltage (Ui)440 VRated impulse withstand voltage (Uimp)4 kVFrequency rating – min50 HzFrequency rating – max60 HzRated switching capacity (IEC/EN 60947-2) at max voltage rating10 kARated switching capacity (IEC/EN 60947-2)15 kARated switching capacity (IEC/EN 60898-1)10 kAOperational switching capacity7.5 kABreaking capacity10 kA (UL1077)Rated service short-circuit breaking capacity (IEC/EN 60898-1)7.5 kARated service short-circuit breaking capacity (IEC/EN 60947-2)7.5 kARated short-circuit breaking capacity (EN 60898) at 230 V10 kARated short-circuit breaking capacity (EN 60898) at 400 V10 kARated short-circuit breaking capacity (IEC 60947-2) at 230 V15 kARated short-circuit breaking capacity (IEC 60947-2) at 400 V15 kAAdmissible back-up fuse – max125 A gL/gGSelectivity class3Lifespan, electrical10000 operationsOvervoltage categoryIIIPollution degree2Direction of incoming supplyAs required
