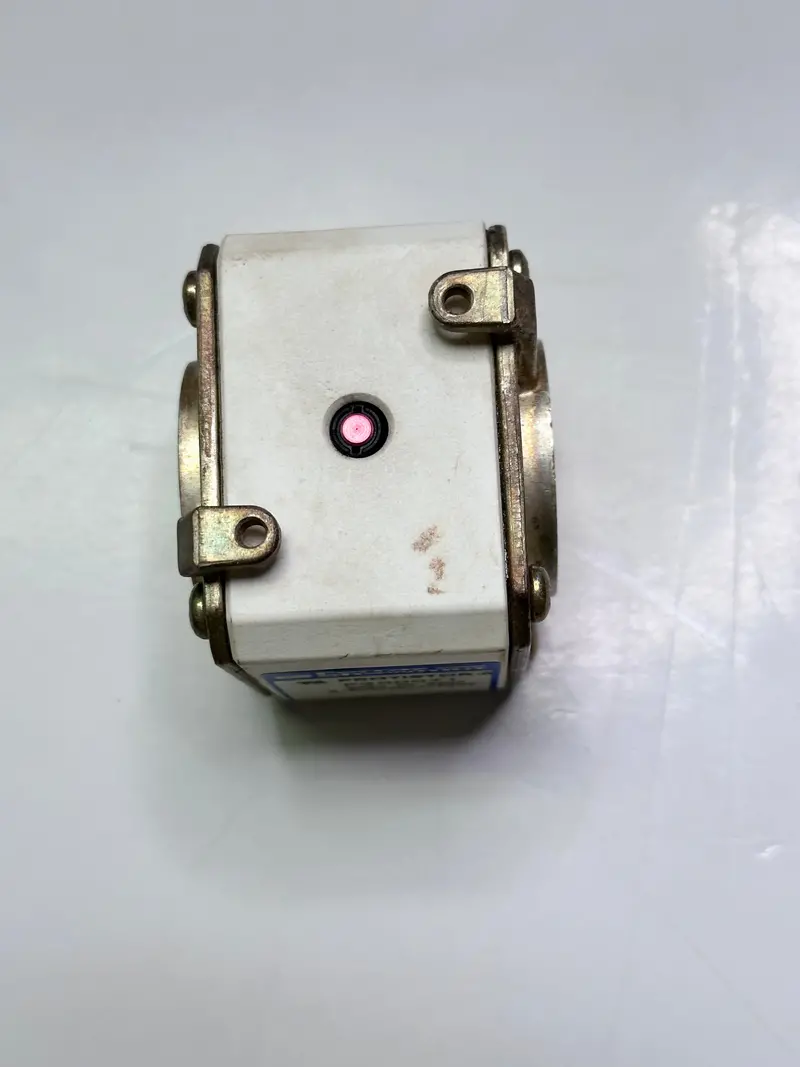

Littelfuse P300071 PROtector® Square-Body Protistor Fuse – 800 A, 660 V AC, Size 32

Description

Rated voltage AC UL

700   V

Rated voltage AC IEC

690   V

Rated current

800   A

ROHS Compliant

Yes

AC or DC

AC

Speed/Characteristic

aR

Fuse size

32

Mounting

Bolted

Clearing I2t At Rated Voltage

660   kA²s

Melting I2t

115   kA²s

AC Max I.R./Breaking Capacity: I1

200   kA

Power Dissipation at Rated Current Value

110   W

Design Details

Standard Terminal

Indication System

Yes

Indication System Type

Striker

Contact materials

Silver-Plated Brass

Connection/Terminal Type

End Contact with Threaded Holes

Body/Insulating Material

Ceramic

Product Weight

0.5463   kg

Product Width

59   mm

Product Length

50.6   mm

Product Height

65   mm
