Description
Type |

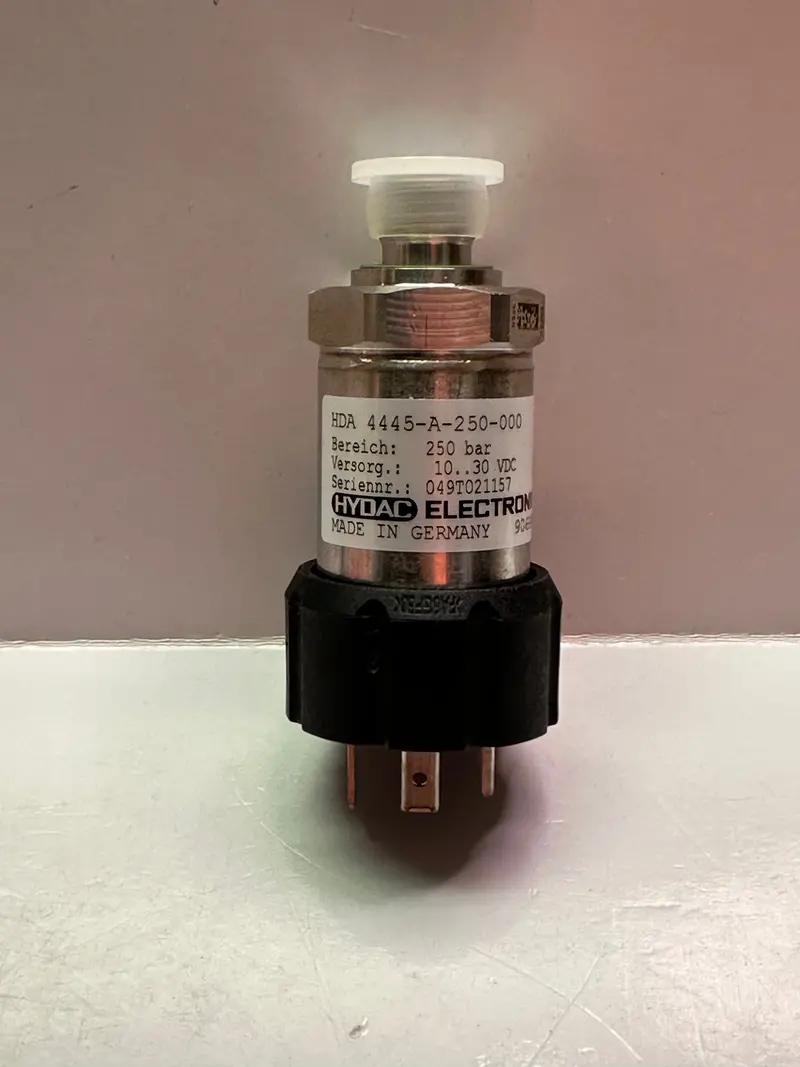

Electronic Pressure Transmitter |
Model Code Description |
HDA 4445-A-250-000 |
Torque Value |
20 N·m15 lb·ft |
Direct Current (DC) Supply Voltage When Applied According to UL Specifications |
8 to 30 V |
Note for Direct Current (DC) Supply Voltage When Applied According to UL Specifications |
Limited energy – According to 9.3 UL 61010; Class 2; UL 1310/1585; LPS UL 60950 |
Residual Ripple of Supply Voltage |
≤ 5 % |
Life Expectancy (0 to 100% Full Scale (FS)) |
> 10 Million Cycles |
Electrical Connection |
Male, 3 Pole + PE, EN175301-803 (Mating Connector Supplied) |
No of Conductor |
2 |
Seal Material |
Fluorocarbon Elastomer (FKM) |
Material of Connection |
Stainless Steel |
CUL®US Mark |
Certificate No.: E318391 |
Note for CUL®US Mark |
Environmental conditions according to 1.4.2 UL 61010-1; C22.2 No. 61010-1 |
Shock Resistance According to DIN EN 60068-2-6 at 10 to 500 Hz Per 6 ms |
≤ 100 g |
Current Consumption |
≤ 25 mA |
Operating Temperature Range |
-25 to 85 ºC |
Input Measuring Range |
250 bar |
Division |
ELECTRONICS |
Product Group Family |
PRESSURE TRANSDUCERS |
Product |
PRESSURE TRANSDUCERS |
