Description

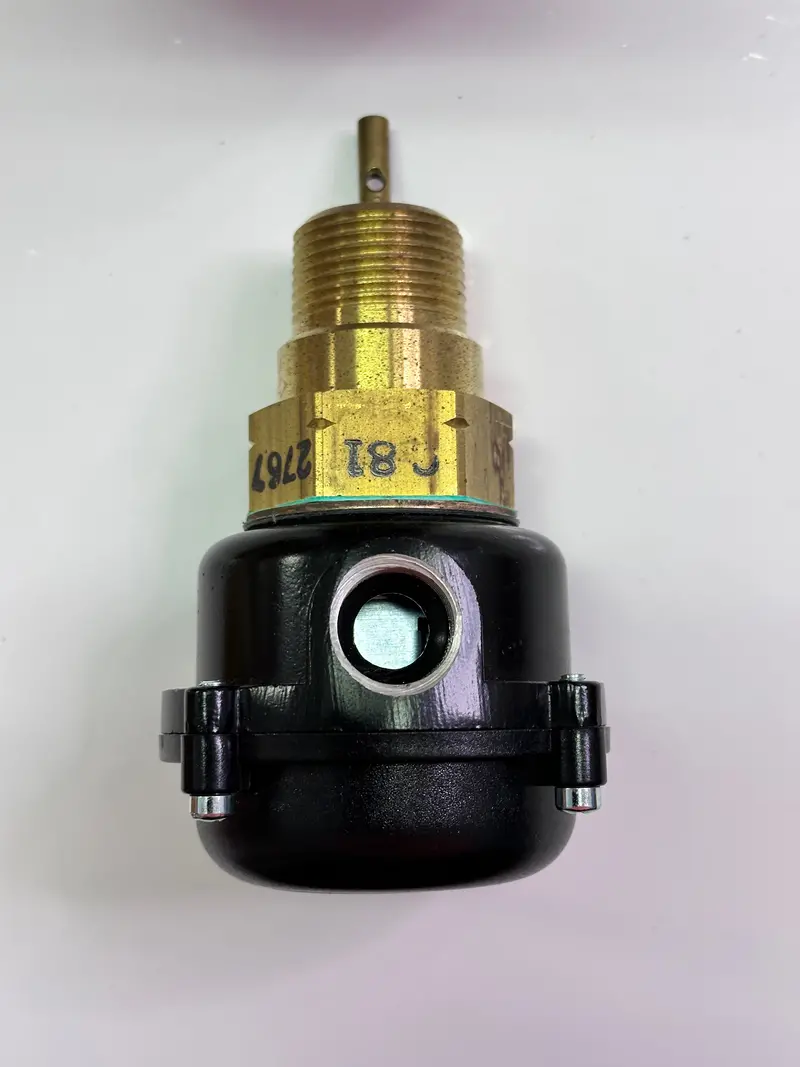

| Item | Flow Switch |
| Ac Contact Rating | 22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load) |
| Connection Size | 1″ |
| Connection Type | NPT |
| Flow Range | 4.9-17.6 GPM |
| Flow Rate – Maximum | 17.6 GPM |
| Flow Rate – Minimum | 4.9 GPM |
| Flow Switch Type | Paddle |
| For Pipe Size | 1″ |
| For Use With Mfr. Model Number | 120602, 179156 |
| Max. Flow Rate | 17.6 GPM |
| Max. Media Temp. | 225°F |
| Media Temp. Range | +32°F to +225°F |
| Min. Ambient Temp. | 32°F |
| Min. Flow Rate | 4.9 GPM |
| Min. Media Temp. | 32°F |
| Overall Height | 8 2/5″ |
| Overall Length | 3.3″ |
| Overall Width | 3.3″ |
| Set Point Configuration | Adjustable |
| Switch Enclosure | NEMA 4X |
| Wetted Material | Brass, Stainless Steel |
| Ambient Temperature (minimum) | 32°F |
| Connection | 1″ NPT |
| Contact Rating (ac) | 22.2A @ 240V (Locked Rotor), 3.7A @ 240V (Full Load), 44.4A @ 120V (Locked Rotor), 7.4A @ 120V (Full Load) |
| Flow Rate (maximum) | 17.6 GPM |
| Flow Rate (minimum) | 4.9 GPM |
| Flow Rate Range | 4.9-17.6 GPM |
| Flow-switch Type | Paddle |
| Media Temperature (maximum) | 225°F |
| Media Temperature (minimum) | 32°F |
| Standards | CULUS APPROVED |
| Switch Type | SPDT |
| Wetted Material | Brass, Stainless Steel |
