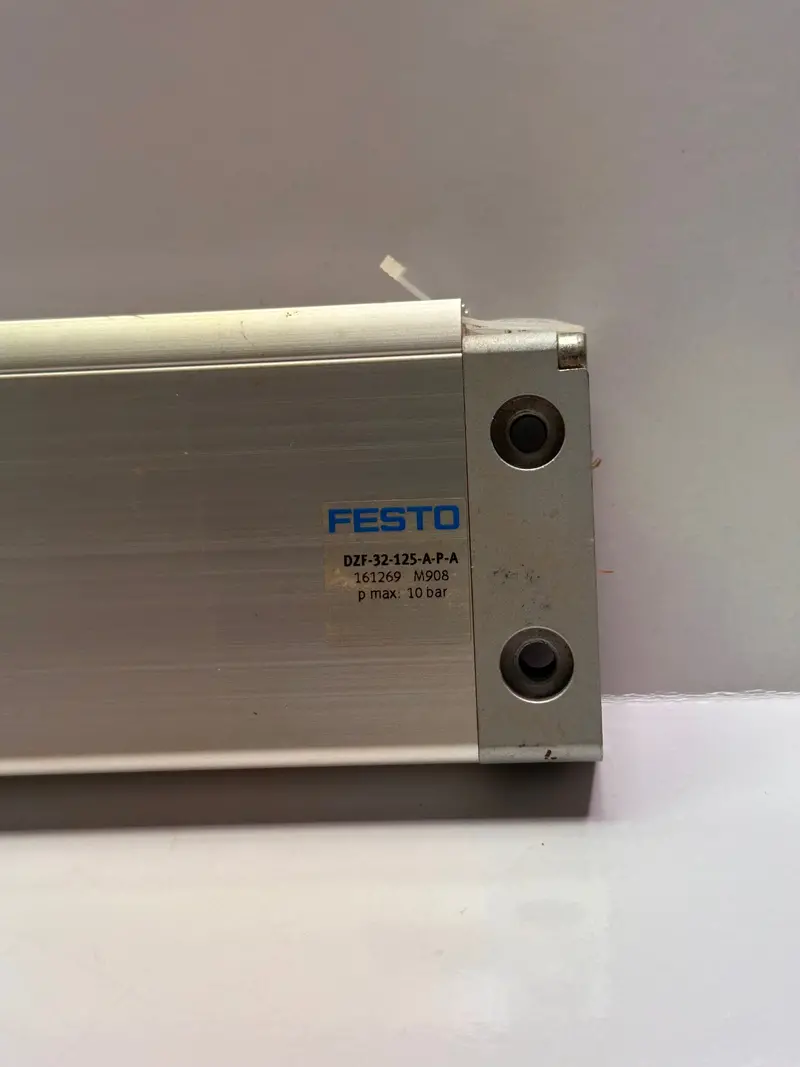

Description
Feature Value
Stroke 125 mm
Piston diameter 32 mm
Equivalent diameter
Max. angle of rotation of the piston rod +/- 0.8 deg
Cushioning Elastic cushioning rings/pads at both ends
Mounting position Any
Mode of operation Double acting
Structural design Piston
Piston rod
Position sensing for proximity sensor
Symbol 00991217
Protection against torsion/guide oval piston
Operating pressure 0.1 MPa … 1 MPa
Operating pressure 1 bar … 10 bar
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC) 2 – Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20 °C … 80 °C
Max. torque for protection against rotation 0.8 Nm
Theoretical force at 6 bar, retracting 415 N
Theoretical force at 6 bar, advancing 483 N
Moving mass at 0 mm stroke 65 g
Additional moving mass per 10 mm stroke 9 g
Additional weight per 10 mm stroke 24 g
Basic weight with 0 mm stroke 272 g
Type of mounting Optionally:
With internal thread
With accessories
Pneumatic connection G1/8
Cover material Wrought aluminum alloy
Seals material NBR
TPE-U(PU)
Housing material Aluminum
Smooth anodized
Piston rod material High-alloy steel
