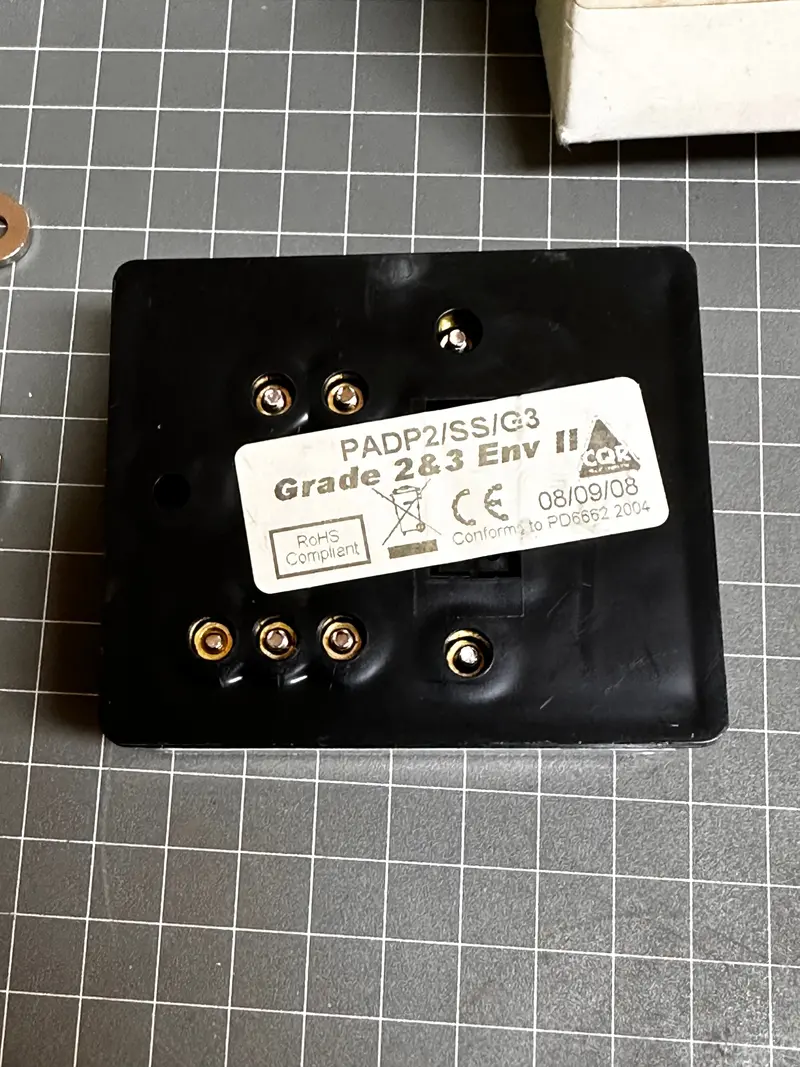

CQR Double-Push Stainless Steel Panic Button PADP2 for G3 Security Panels

Description

• Latching
• Selectable for Normally Open / Normally Closed
• Indicator to show activation
• Microswitch Alarm and Tamper
• Selectable End of Line Resistors
• Key Resettable
• Spare keys available
• Suitable for Grade 2 & 3 Installations

Specification

• Connections: 4 PCB Terminals
• Operation Method: Dual Push Button
• Material: ABS
• Dimensions mm: 74 x 62 x 30
• Contact Form: Microswitch
• Voltage Range: 12v DC
• Switching Current: 500mA @ 12Vdc
• Switch Option: N/O or N/C
• Temperature Range: -15° C to +40° C
• Tamper: Cover & RFMS (optional)
• Reset Method: Key
• Colours: White
• Standards: EN50131-1 Grade 3 & PD6662:2010
• Environmental Class: II
