Description

Design

Range

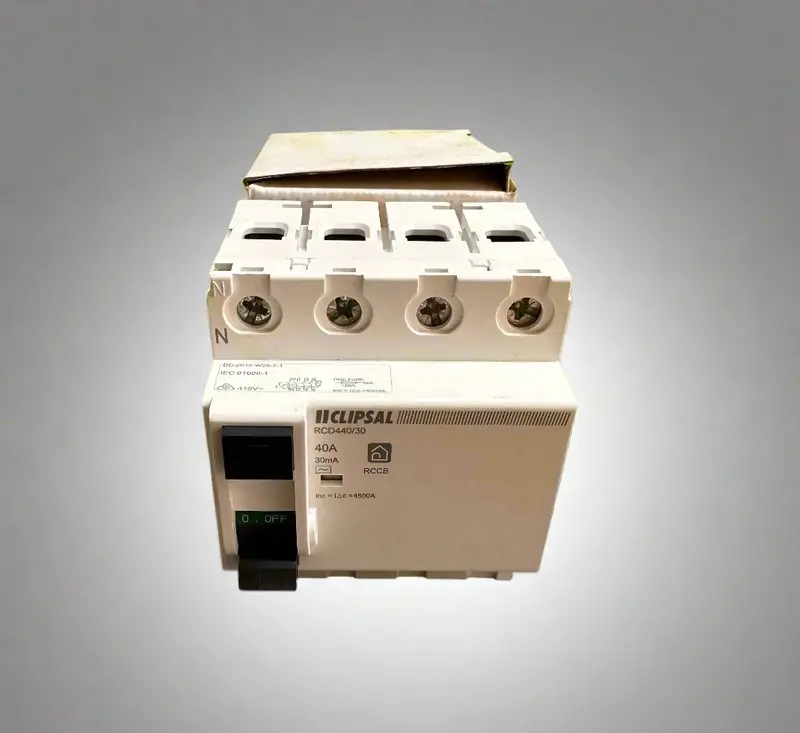

Resi MAX

Product or component type

residual current circuit breaker (RCCB)

Product brand

Clipsal

Device application

protection



Physical

[in] rated current

40 A

[ue] rated operational voltage

415 V AC

Standards

AS/NZS 61008

Ip degree of protection

• IP20 conforming to IEC 60529
• IP40 (modular enclosure) conforming to IEC 60529

Ambient air temperature for operation

-5…40 °C

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2301023EN

Circularity profile

N/A



Others

Package 1 bare product quantity

1

Poles description

4P

Number of modules

4

Network type

AC

Earth-leakage sensitivity

30 mA

Earth-leakage protection class

type AC

[uimp] rated impulse withstand voltage

6 kV

Size

81 x 72 x 75 mm conforming to DIN 43880

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.0 cm

Package 1 width

8.0 cm

Package 1 length

9.0 cm

Package 1 weight

366.0 g

Scip number

2c7837a4-39fc-4abc-96ed-2ef14f8f87c7

Global warming ; total life cycle

68 kg CO2 eq.

Carbon footprint (kg.eq.co2 per cr, total life cycle)

67.93704355185174
