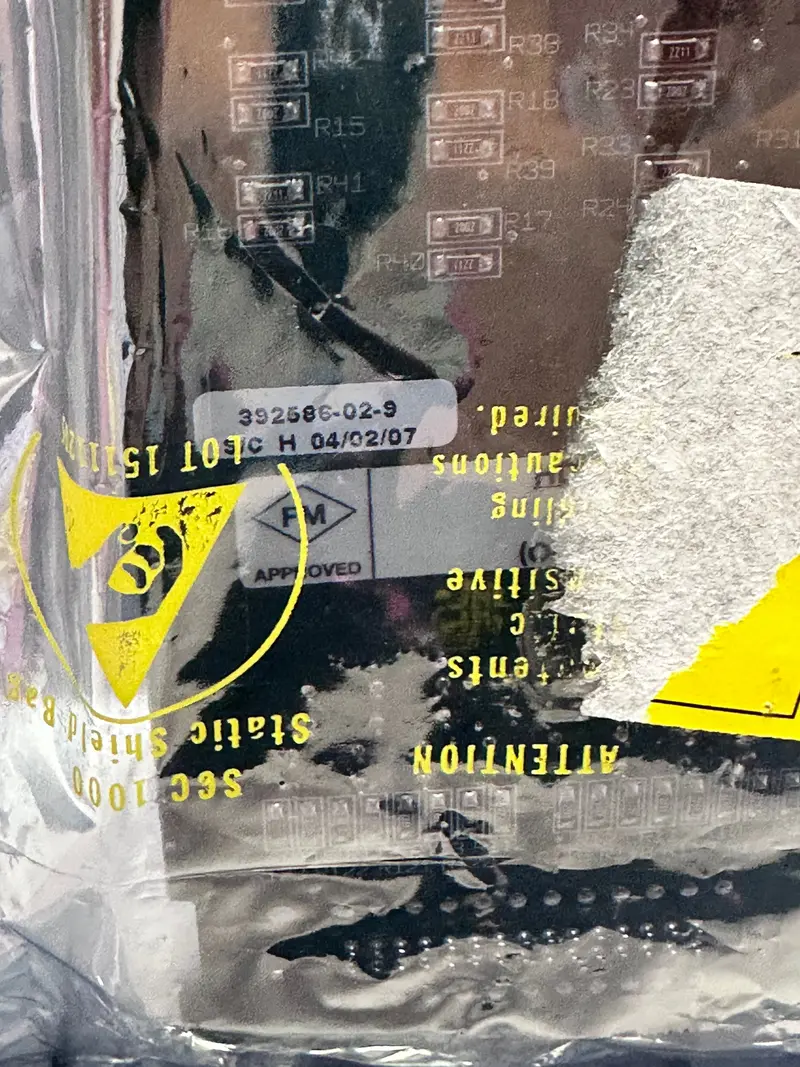

Bristol HDDO Module / PCB Assembly – Part No. 392586-02-9

Description

HDDO MODULE – Open Drain Output.

SPECIFICATIONSNumber of Outputs: 8-16Output Configuration: Open Drain, 100 mA @ 35VdcSource Impedance: .45 Ohms Surge Suppression: Rugged – Surge Suppression(Meets ANSI/IEEE C37.90-1978)Common Mode – @ 30 V RMS(for Open Collector)Termination Options: Local – TB1, TB2Remote – J1Operating Temperature: -20°C to +70°C (-4°F to +158°F)Storage Temperature: -40°C to +85°C (-40°F to +185°F)RFI Susceptibility: 10V/Meter 20MHz to 500MHzHDDO Board Versions: Local Termination(392586-01-0)Remote Termination (392586-02-9)1 = For 3310/30/31/35
2 = For 3330/31/35   3GB-4 / HDDO Module
CI-3310/30/35 (11/2005)
