Description

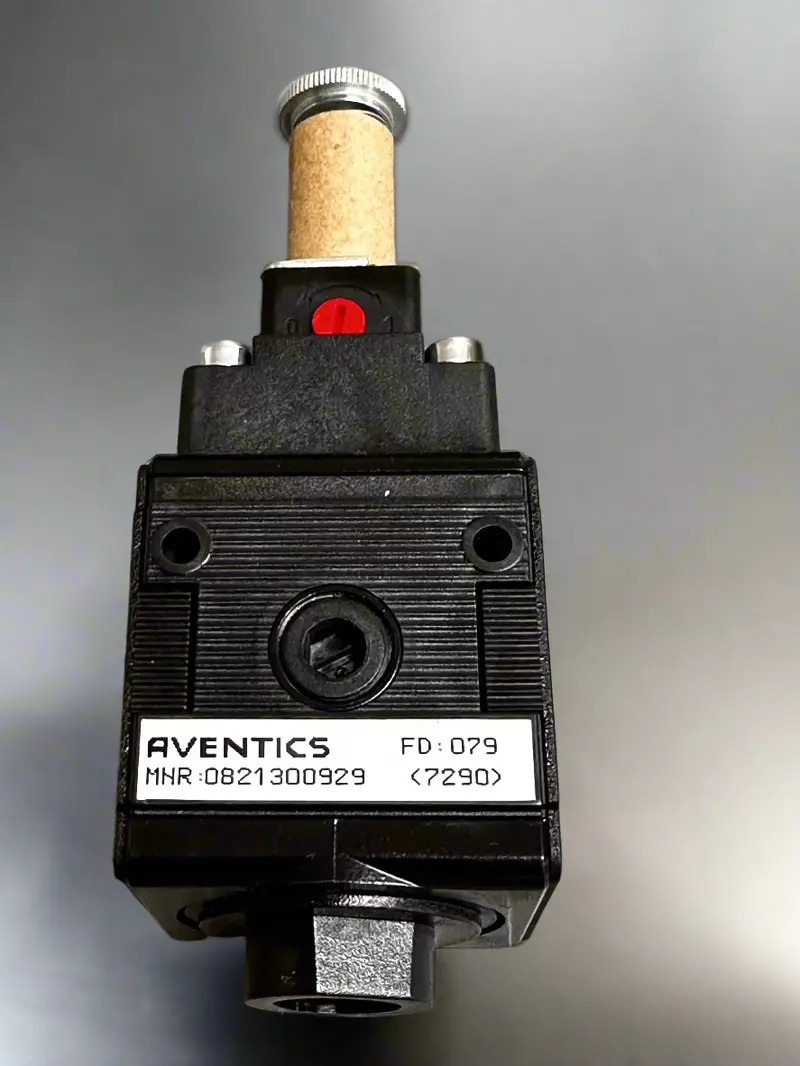

AVENTICS – 0821300929 – 3/2-directional valve, electrically operated, Series NL2-SOV
| activation | electrically | ||
| compressed air connection | g 1/4 | ||
| working pressure max | 10 bar | ||
| pilot | internal | ||
| parts | 3/2-directional valve | ||
| basic valve with electrical connector | pilot valve without coil | ||
| Manual override | with detent | ||
| max. ambient temperature | 60 °c | ||
| max. particle size | 5 µm | ||
| nominal flow qn 1 to 2 | 1100 l/min | ||
| Duty cycle | 100 % | ||
| Reverse polarity protection | protected against polarity reversal | ||
| electrical connection 2, thread size | iso 6952, form b |
| nominal flow qn | 1100 l/min | ||
| working pressure min. | 2.5 bar | ||
| Sealing principle | soft seal | ||
| connection type | pipe connection | ||
| can be assembled into blocks | can be assembled into blocks | ||
| Type | poppet valve | ||
| min. ambient temperature | -10 °c | ||
| Medium | compressed air, neutral gases | ||
| compressed air connection, exhaust | g 1/4 | ||
| nominal flow qn 2 to 3 | 450 l/min | ||
| protection class with connection | ip65 | ||
| electrical connection type 2 | plug |
