Description

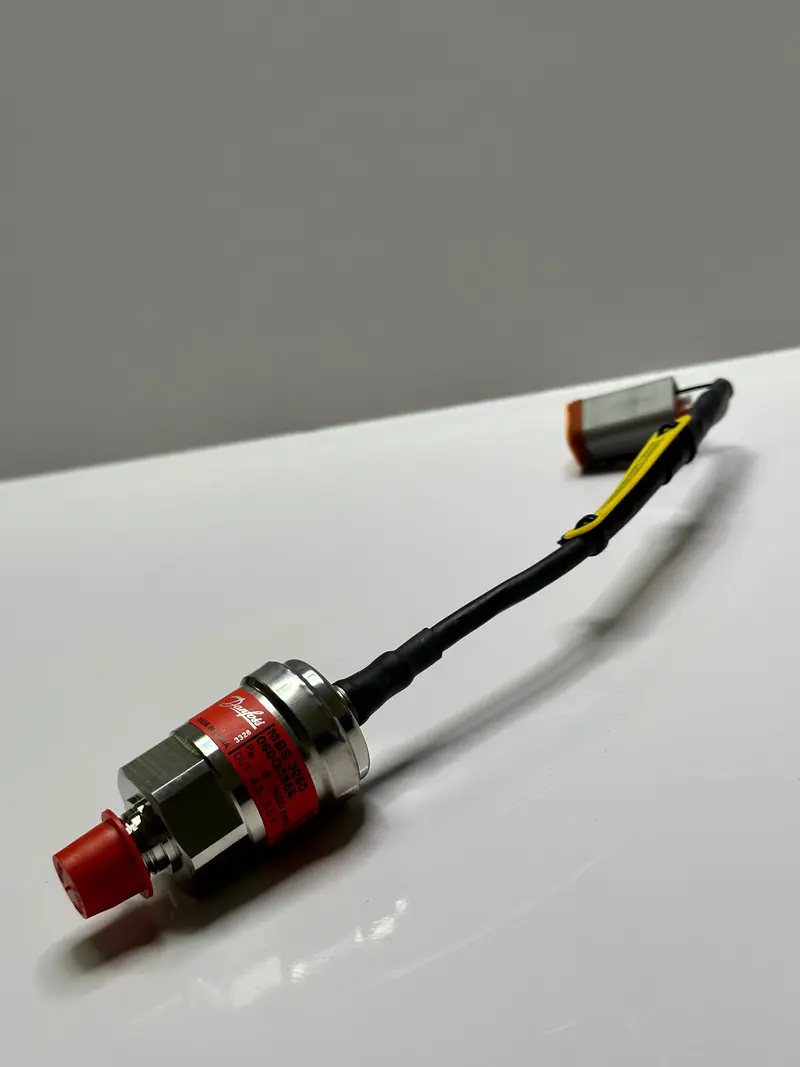

Danfoss Pressure Transducer 0-3000 psi
Ex II 3G
| + output | White |
| + supply | Red |
| – common | Black |
| Accuracy, max. +/- FS [%] | 1 % |
| Accuracy, typical +/- FS [%] | 0.5 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -30 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | -22 °F |
| Approval | ATEX |
| Approval comments | ATEX Ex nA IIA T3 Gc |
| Cable length [in] | 79 in |
| Cable length [m] | 2 m |
| Compensated temp. range [°C] [Max] | 80 °C |
| Compensated temp. range [°C] [Min] | 0 °C |
| Compensated temp. range [°F] [Max] | 176 °F |
| Compensated temp. range [°F] [Min] | 32 °F |
| Electrical conn. comments | Screened |
| Electrical connection | Cable |
| Enclosure rating IP | IP67 |
| Flush diaphragm | No |
| Intrinsically safe | No |
| Medium temperature range [°C] [Max] | 85 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 185 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| Non-linearity BFSL ±FS [%] | 0.5 % |
| Output signal | Voltage |
| Output signal [V] [Max] | 5.5 V |
| Output signal [V] [Min] | 0.5 V |
| Overload pressure max. [psi] | 21750 psi |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection size | 1/4-18 |
| Pressure connection standard | ANSI/ASME B1.20.1 |
| Pressure connection type | NPT |
| Pressure Male/Female | Male |
| Pressure range [bar] [Max] | 206.84 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure range [psi] [Max] | 3000 psi |
| Pressure range [psi] [Min] | 0 psi |
| Pressure unit reference | Gauge (relative) |
| Product group | Sensors |
| Product name | Pressure transmitter |
| Pulse-snubber | Yes |
| Response time max. [ms] | 4 ms |
| Specification key | MBS 3050-761D-A3AC04-0 |
| Supply voltage [V] DC [Max] | 30 V |
| Supply voltage [V] DC [Min] | 9 V |
| Type | MBS 3050 |
| + output | White |
| + supply | Red |
| – common | Black |
| Accuracy, max. +/- FS [%] | 1 % |
| Accuracy, typical +/- FS [%] | 0.5 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -30 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | -22 °F |
| Approval | ATEX |
| Approval comments | ATEX Ex nA IIA T3 Gc |
| Cable length [in] | 79 in |
| Cable length [m] | 2 m |
| Compensated temp. range [°C] [Max] | 80 °C |
| Compensated temp. range [°C] [Min] | 0 °C |
| Compensated temp. range [°F] [Max] | 176 °F |
| Compensated temp. range [°F] [Min] | 32 °F |
| Electrical conn. comments | Screened |
| Electrical connection | Cable |
| Enclosure rating IP | IP67 |
| Flush diaphragm | No |
| Intrinsically safe | No |
| Medium temperature range [°C] [Max] | 85 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 185 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| Non-linearity BFSL ±FS [%] | 0.5 % |
| Output signal | Voltage |
| Output signal [V] [Max] | 5.5 V |
| Output signal [V] [Min] | 0.5 V |
| Overload pressure max. [psi] | 21750 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection size | 1/4-18 |
| Pressure connection standard | ANSI/ASME B1.20.1 |
| Pressure connection type | NPT |
| Pressure Male/Female | Male |
| Pressure range [bar] [Max] | 206.84 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure range [psi] [Max] | 3000 psi |
| Pressure range [psi] [Min] | 0 psi |
| Pressure unit reference | Gauge (relative) |
| Product group | Sensors |
| Product name | Pressure transmitter |
| Pulse-snubber | Yes |
| Quantity per packing format | 8 pc |
| Response time max. [ms] | 4 ms |
| Specification key | MBS 3050-761D-A3AC04-0 |
| Supply voltage [V] DC [Max] | 30 V |
| Supply voltage [V] DC [Min] | 9 V |
| Type | MBS 3050 |
