Description
Main
| Range of product |
Series 56 |
| Range |
Clipsal – 56 Series |
| Product brand |
Clipsal |
| Product or component type |
Switch |
| Assembly Type |
Basic element with full cover plate |
| Device application |
Control |
| Handle colour |
Grey |
| Suitability for isolation |
Yes |
| Colour |
Cover: grey |
Complementary
| Poles description |
4P |
| [Icm] rated short-circuit making capacity |
1.7 kA |
| Control type |
Rotary knob |
| Number of poles |
4 |
| Installation Type |
Surface |
| Material |
PC (polycarbonate) |
| tightening torque |
0.8 N.m |
| Local signalling |
without |
| [Ue] rated operational voltage |
500 V AC 50 Hz |
| Rated current |
20 A |
| Marking location |
Marking on surface |
| Mounting Type |
By screws |
| Breaking capacity |
20 kA |
| Targeted country |
Australia |
| Height |
107 mm |
| Width |
101 mm |
| Depth |
124 mm |
| Net weight |
0.64 kg |
| [Uimp] rated impulse withstand voltage |
4 kV |
| [Icw] rated short-time withstand current |
0.8 kA for 1 s |
| Switch function |
4-pole |
Explore more from our collection.
![56Sw420c0 Four Pole Changeover & Reversing Switch [Grey] 1](https://partsgarage.shop/wp-content/uploads/2026/05/56sw420c0-four-pole-changeover-reversing-switch-grey-1-01.webp)

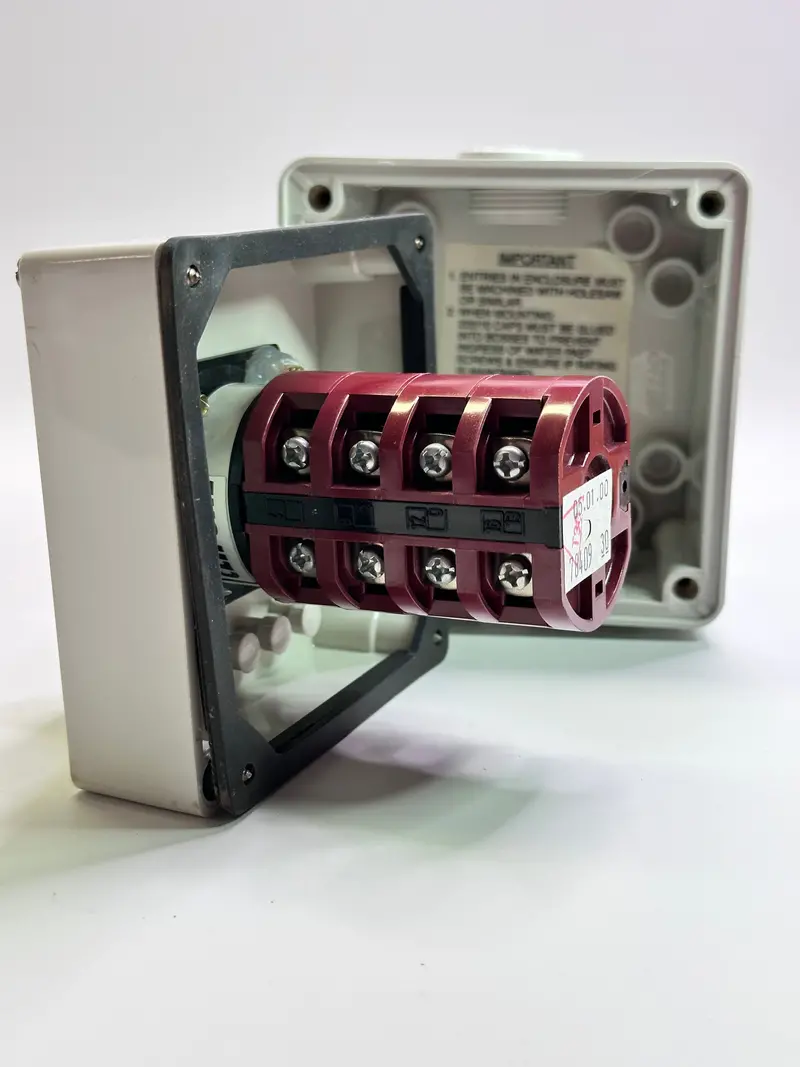

![56Sw420c0 Four Pole Changeover & Reversing Switch [Grey] 2](https://partsgarage.shop/wp-content/uploads/2026/05/56sw420c0-four-pole-changeover-reversing-switch-grey-2-02.webp)
