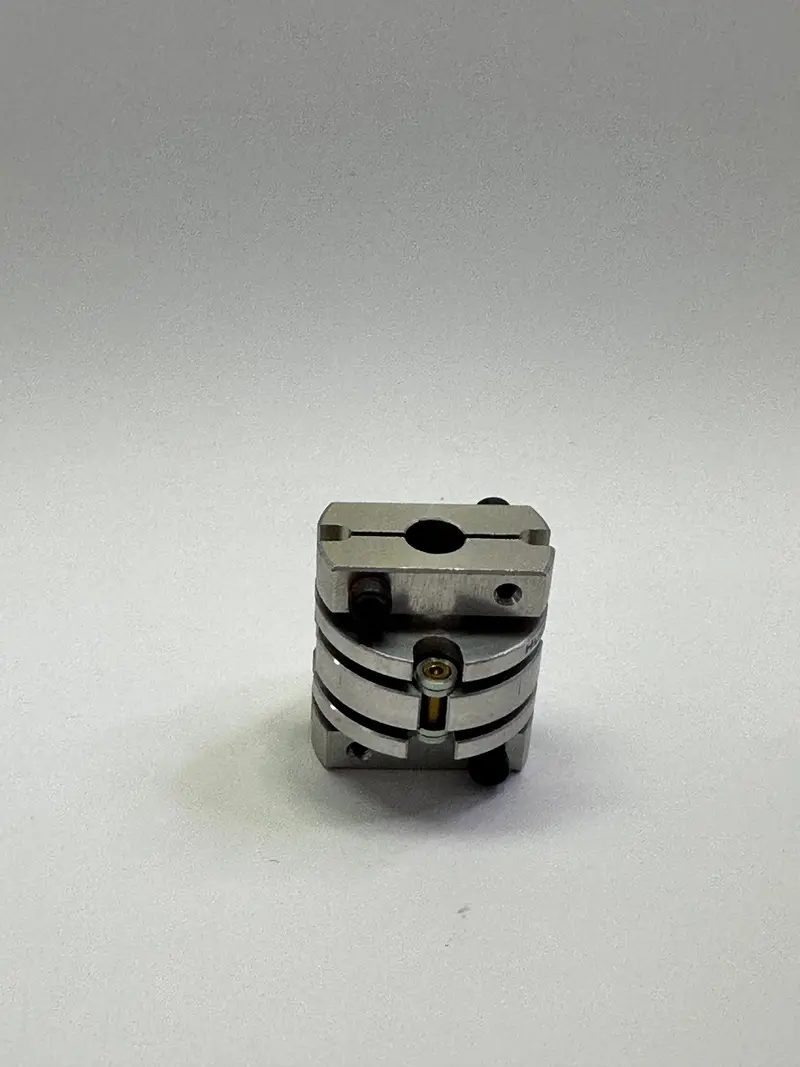

26mm Two-Stage Disc Coupling – Model 466.26.2424 (229-497)

Description

466.26.2424 – 1/4″ x 1/4″ x 28.4mmCoupling TypeDisc Coupling – Flex-MConfigurationDouble – RivetedSize26MaterialAluminiumMax Bore B1 (mm)10Min Bore B1 (mm)4Max Bore B2 (mm)10Min Bore B2 (mm)4Angular Compensation, Max (degrees)4Angular Stiffness (N/degree)0.5Axial Compensation, Max (mm)+/- 0.2Axial Stiffness (N/mm)< 7Bore Tolerance (mm)+0.03 / -0.00Fastener Screw SizeM2.5Fastener Screw Torque (Nm)1.32Fastener Wrench Size (mm)2Max Speed (rpm)8000Operating Temperature (°C)-40 to +120Peak Torque (Nm)2.3Radial Compensation, Max (mm)0.2Radial Stiffness (N/mm)37Resists Axial LoadYesShaft ConnectionClampTorsional Stiffness (Nm/rad)385Mass (Weight) (g)20[B3] Clearance Bore (mm)11[D] Outside Diameter (mm)25.6L1 Dimension (mm)10[L] Length (mm)28.4[L] Overall Length (mm)28.4
